Pellet stove Caminetti Montegrappa BITTA MX16 ducted 3 motors 16Kw

7291048400

Montegrappa BITTA MX16 hermetic - Pellet stove with ventilated and ducted hot air 3 fans. Round-shaped coating, front panel and structure in painted steel.

Pannelli
Wifi module
€3,070.00
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

Airtight pellet stove with ducted ventilated air 3 BITTA MX 16 motors
L 64 x P 62 x H 118 cm

Round-shaped coating, front panel and structure in painted steel. The external door is characterized by a large black painted curved glass.

Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
Intuitive software with setting of both the ambient temperature and the maximum operating power.
Equipped with STAND BY function to maintain the desired comfort of the environment
internal
Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
Ignition resistance
Ignition tube inserted inside the burner, always guarantees perfect ignitions of the product
Deep cylindrical burner with holes for air inlet for the second combustion
Electronic card with the possibility of managing external thermostats
TUTOR new efficient combustion control system
Modern removable hearth sides in cast iron
Double ducting, served by 2 powerful independent centrifugal fans
Continuous rotation gearmotor
Double flue gas pass to the side of the combustion chamber
Advanced side heat exchanger, in steel, consisting of tubular ducts immersed in the flue gas flow to ensure efficient heat exchange for heating the air
channeled
Heat exchanger, rear and above the combustion chamber, in steel, for heating the ambient air Probe to detect the ambient temperature
Safety thermostat
Safety vacuum gauge
Ambient air tangential fan
Large removable ash drawer
Adjustable non-slip feet for correct leveling
Door equipped with an advanced secondary air system
Fully ducted combustion air that allows the stove to be certified hermetic
Wi-Fi module (optional)



potenza termica globale (al focolare) 15,9 kW
potenza certificata 5,5 - 14,0 kW
CO misurato (al 13% di ossigeno) 0,0084 %
rendimento 88,0 %
consumo combustibile 1,23 - 3,42 kg/h
portata in massa dei fumi 4,7 - 10 g/s
temperatura dei fumi 119 - 210 °C
tiraggio (depressione al camino) 8 Pa
capacità serbatoio 30 Kg
autonomia 24 - 8,5 h
tubo uscita fumi Ø 80 mm
ingresso aria per la combustione Ø 60 mm
superficie riscaldabile 161 *mq
peso netto 124 kg



Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale

Product Details
7291048400

Specific References

ean13
2001902139834
16 other products in the same category:

Reference: 7291046600-2062914934

Brand: Caminetti Montegrappa

Pellet stove Caminetti Montegrappa EVOCA EVO NIS10 smoke output above 9 Kw 5 stars

Montegrappa EVOCA EVO NIS - Hot air pellet stove with integrated upper smoke outlet with intelligent SMART ventilation. Evoca adapts easily to both environments furnished in a classic style and to more modern ones. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval pattern.

Price €2,670.00
More
Available for order

Reference: 7294049000-2062914934

Brand: Caminetti Montegrappa

Pellet stove Caminetti Montegrappa EVOCA NXS EVO 10,1 Kw 5 STARS

Montegrappa EVOCA NXS EVO 10.1 Kw 5 STARS - Hot air pellet stove with intelligent ducted SMART ventilation. Round shape and sophisticated design, Evoca easily adapts to both classically furnished and more modern environments. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval motif.

Price €2,950.00
More
Available for order

Reference: 7294041200-2064919702

Brand: Caminetti Montegrappa

Pellet stove Caminetti Montegrappa BOLLA EVO NPS7 7 Kw

Montegrappa BOLLA EVO NPS7 -Hot air pellet stove with intelligent SMART ventilation with majolica cladding and top, round-shaped painted steel structure. Circular shape, sinuous lines and minimal design are the main features of Bolla Evo. Curved structure with sliding top. All-glass coating with "wonder effect". The characteristic of the "wonder effect"...

Price €2,430.00
More
Available for order

Reference: 7294041200-2062916547

Brand: Caminetti Montegrappa

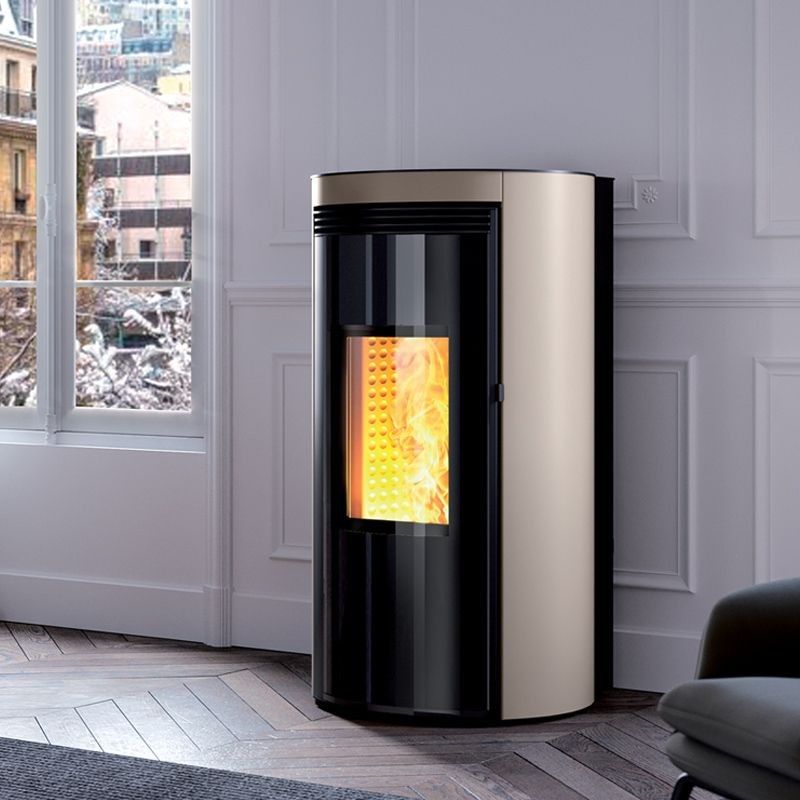

Pellet stove Caminetti Montegrappa GASSA EVO NPS7 7 Kw
