The Thermorossi Compact SLIM S5 ECO pellet boiler is a 20.57 kW power appliance with an ultraslim design that allows it to be installed flush with the wall, drastically reducing overall dimensions thanks also to the upper hydraulic connections and the lateral, rear exhaust or higher. Ideal for domestic heating, this boiler becomes the heart of the system and thanks to its compact dimensions, it can be easily integrated into any type of home
1 - Preparation for smoke outlet: top, rear, left side
2 - Preparation of hydraulic connections: upper, rear
3 - Newly designed LCD digital panel implemented by simple and intuitive graphic messages
4 - Newly designed mantle that is easy to integrate into a domestic environment, with a strong layer of insulation
5 - Heat exchanger with Thermocore® technology equipped with turbulators
6 - Patented PelletPower® burner
7 - Simplified cleaning thanks to EasyCleaning technology
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)

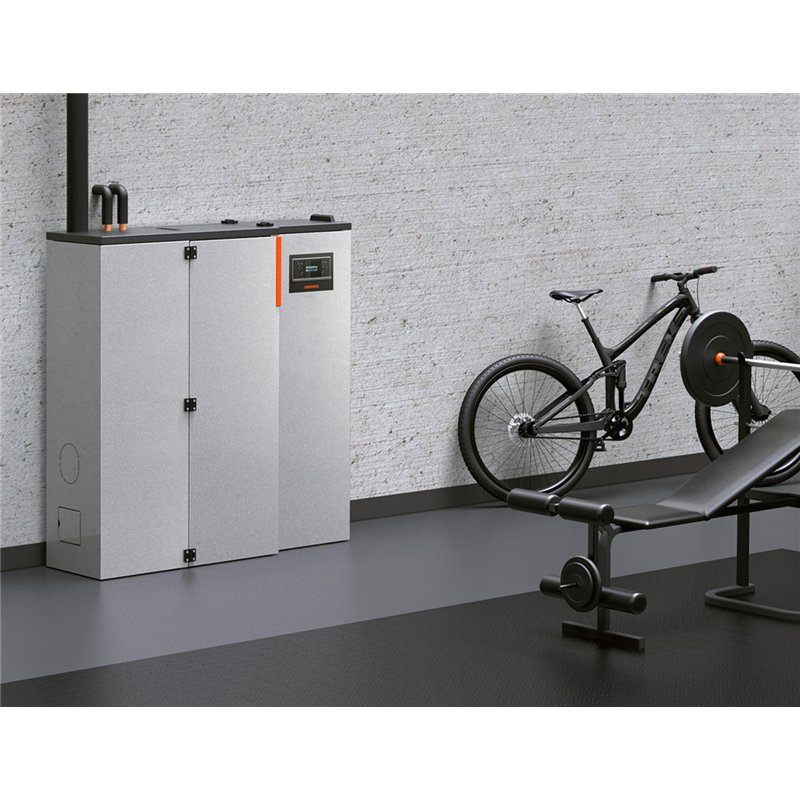

The Thermorossi Compact Slim S25 Evo pellet boiler is the ideal solution for those looking for an efficient and compact heating system. With a depth of just 39 cm, it can be easily installed close to the wall, optimizing the available space.
PELLETPOWER®: The motorized burner with patented technology guarantees constant performance without wasting fuel. The combustion residues are removed from the sides and collected in the large ash drawer.
Silent: At minimum speed, the boiler emits only 36 decibels of noise during operation.
THERMOCORE: The Thermocore system, with its vertical tube bundle and a high number of elements, increases the exchange surface and improves thermal efficiency.
XXL: High-quality materials, such as cast iron and heavy-gauge steel, offer great heat storage and component durability.
ULTRASLIM: the boiler has a footprint of just 39 cm in depth, top, side or rear smoke outlet and upper hydraulic connections, which allow it to be installed flush with the wall
SMARTINFO: The intuitive LCD digital panel provides clear and immediate information.
Ease of maintenance: The large ash drawer and inspections facilitate cleaning, maintaining efficiency at the highest levels.
SETUP OK: the generator does not require further costs for calibration and testing, each product is turned on in the factory and checked for at least 1 hour of operation.
Furthermore, the boiler is interfaced with the patented Flat 250 stratification storage tank, optimizing the system configuration and producing domestic hot water efficiently.
The Thermorossi Compact SLIM S25 EVO pellet boiler combines efficiency, design and advanced features for the thermal comfort of your home.
| DIMENSIONI (HXLXP) | 1314X1212X400 |
| PESO (KG) | 228 |
| AREA RISCALDABILE (M²) | 185 |
| RENDIMENTO MAX | 92,6 % |
| POTENZA AL FOCOLARE (KW) | 6,6 - 22,3 |
| POTENZA NOMINALE (KW) | 6,1 - 20,6 |
| POTENZA ALL'ACQUA (KW) | 6,1 - 20,6 |
| IRRAGGIAMENTO (KW) | - |
| CONSUMO ORARIO PELLET (KG/H) | 1,4 - 4,8 |
| ARIA PRIMARIA DA ESTERNO | SI |
| CIRCOLATORE IMPIANTO | SI |
| VASO D'ESPANSIONE | SI |
| VALVOLA DI SOVRA PRESSIONE | SI |
| ASSORBIMENTO ELETTRICO | 169-383 |
| RUMOROSITA' | 36dB |
| EMISSIONI CO (MG/M³; 13% DI O2) | 69 |
| CAPACITA' SERBATOIO | 33 KG |
| EMISSIONI POLVERI (MG/M³; 13% DI O2) | 13,2 |
| DIAMETRO USCITA FUMI (MM) | 100 |
| TIRAGGIO MINIMO RICHIESTO (PA) | -10 |
| TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA) | -5 |
Classe Energetica: A+
