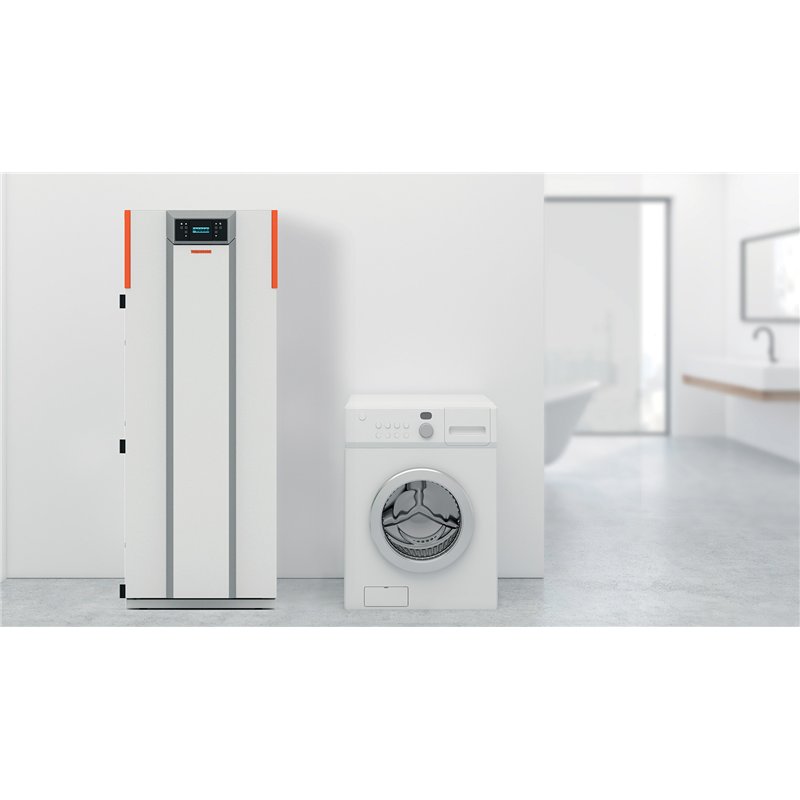

Thermorossi Compact S19 GT 5 pellet boiler

The Thermorossi Compact S19 GT5 pellet boiler is a reliable and high-performance heat generator, built with thick steel. Here are some of its main features:

PELLETPOWER® burner: The PELLETPOWER® cast iron burner is patented and motorized, ensuring efficient and clean combustion.
Integrated Design: The new designed cape integrates harmoniously into any home environment. Furthermore, the tailgate is reversible to adapt to installation needs.
Tank Capacity: The boiler has a 45 kg tank, with the possibility of combining an additional 100 kg tank on the right or left side.
Ease of Use: The LCD digital panel offers intuitive management, while the weekly chrono allows three independent daily programming.
Safety: The boiler is equipped with a mechanical pressure switch, refractory hearth door, removable ash drawer and pressure limiting valve.
Energy Efficiency: Power management can be manual or automatic via modulation. Furthermore, the THERMOCONTROL function allows you to set the minimum temperature for a stratification storage or a buffer tank.
Silent: At minimum speed, the boiler emits only 36 decibels of noise during operation.
Thermocore system: The vertical tube bundle and the high number of elements improve the overall thermal efficiency.
Quality Materials: The Thermorossi boiler uses materials such as cast iron, guaranteeing sturdiness and durability over time.
SETUP OK: the generator does not require further costs for calibration and testing, each product is turned on in the factory and checked for at least 1 hour of operation.
5 star certification: cleaner combustion, with dust emissions reduced by over 80%, and possibility of accessing the Conto Termico 2.0 incentives at maximum contribution.

The Thermorossi Compact S19 GT5 pellet boiler combines efficiency, respect for the environment, design and advanced features for the thermal comfort of your home.

DIMENSIONI (HXLXP)	1374X526X725
PESO (KG)	200
AREA RISCALDABILE (M²)	158
RENDIMENTO MAX	95,3 %
POTENZA AL FOCOLARE (KW)	4,9 - 18,4
POTENZA NOMINALE (KW)	4,4 - 17,5
POTENZA ALL'ACQUA (KW)	4,4 - 17,5
IRRAGGIAMENTO (KW)	-
CONSUMO ORARIO PELLET (KG/H)	1 - 3,9
ARIA PRIMARIA DA ESTERNO	SI
CIRCOLATORE IMPIANTO	SI
VASO D'ESPANSIONE	SI
VALVOLA DI SOVRA PRESSIONE	SI
ASSORBIMENTO ELETTRICO	60-390
RUMOROSITA'	36dB
EMISSIONI CO (MG/M³; 13% DI O2)	19
CAPACITA' SERBATOIO	45 KG
EMISSIONI POLVERI (MG/M³; 13% DI O2)	8
DIAMETRO USCITA FUMI (MM)	100
TIRAGGIO MINIMO RICHIESTO (PA)	-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)	-5







Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
