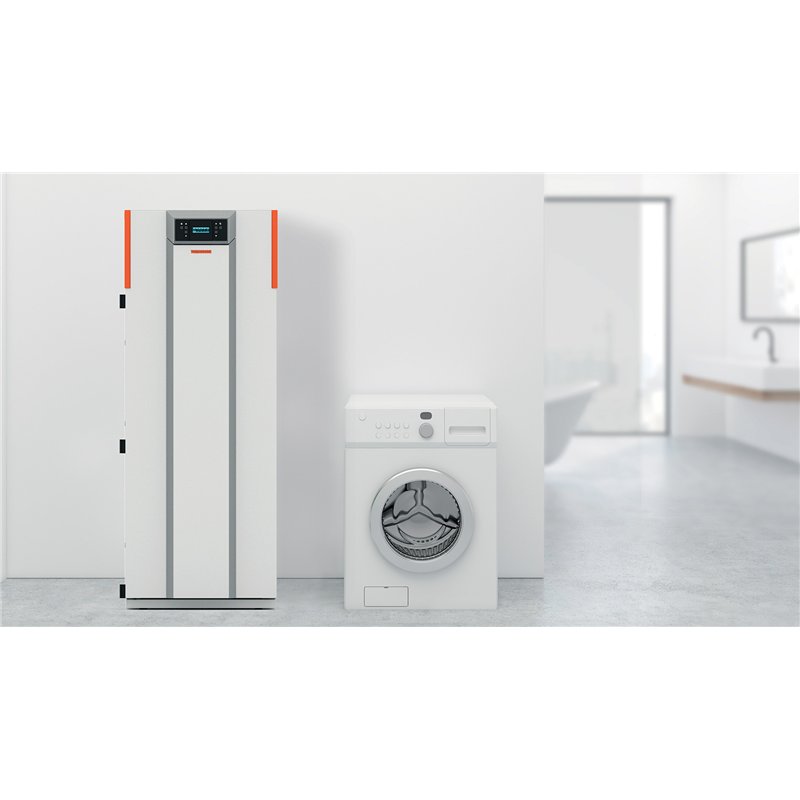

La caldaia a pellet Thermorossi Compact S17 GT5 è un apparecchio di potenza 15,9 kW con un design contemporaneo. Ideale per il riscaldamento domestico, questa caldaia diventa il cuore dell’impianto e grazie alle sue misure compatte, è facilmente integrabile in ogni tipo di abitazione
1 - Scambiatore di calore con tecnologia THERMOCORE® dotato di turbolatori
2 - Pannello digitale LCD di nuovo design implementato da messaggi grafici semplici ed intuitivi
3 - Mantello di nuovo design facile da integrare in un ambiente domestico, con forte strato di coibentazione
4 - Bruciatore brevettato PELLETPOWER®
5 - Pulizia semplificata grazie alla tecnologia EasyCleanin
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
The Thermorossi Compact S17 GT5 pellet boiler is a reliable and high-performance heat generator, constructed from heavy-gauge steel. Here are some of its main features:
PELLETPOWER® Burner: The patented PELLETPOWER® cast iron burner is motorized, ensuring efficient and clean combustion.
Integrated Design: The newly designed casing integrates harmoniously into any home environment. Furthermore, the door is reversible to adapt to installation needs.
Tank Capacity: The boiler has a 46 kg tank, with the option of adding an additional 100 kg tank on the right or left side.
Ease of Use: The digital LCD panel offers intuitive management, while the weekly timer allows for three independent daily programs.
Safety: The boiler is equipped with a mechanical pressure switch, refractory firebox door, removable ash drawer, and pressure relief valve.
Energy Efficiency: Power management can be manual or automatic via modulation. Furthermore, the THERMOCONTROL function allows you to set the minimum temperature for a stratified storage tank or buffer tank.
Quiet: At minimum power, the boiler emits only 36 decibels of noise during operation.
Thermocore System: The vertical tube bundle and the high number of elements improve overall thermal efficiency.
Quality Materials: The Thermorossi boiler uses materials such as cast iron, ensuring robustness and durability.
SETUP OK: The generator requires no additional costs for calibration and testing; each product is factory-installed and tested for at least 1 hour of operation.
5-Star Certification: Cleaner combustion, with dust emissions reduced by over 80%, and the possibility of accessing Conto Termico 2.0 incentives at the maximum contribution.
The Thermorossi Compact S17 GT5 pellet boiler combines efficiency, respect for the environment, design and advanced features for the thermal comfort of your home.
| DIMENSIONI (HXLXP) | 1374X526X725 |
| PESO (KG) | 200 |
| AREA RISCALDABILE (M²) | 143 |
| RENDIMENTO MAX | 95,4 % |
| POTENZA AL FOCOLARE (KW) | 4,9 - 16,7 |
| POTENZA NOMINALE (KW) | 4,4 - 15,9 |
| POTENZA ALL'ACQUA (KW) | 4,4 - 15,9 |
| IRRAGGIAMENTO (KW) | - |
| CONSUMO ORARIO PELLET (KG/H) | 1 - 3,54 |
| ARIA PRIMARIA DA ESTERNO | SI |
| CIRCOLATORE IMPIANTO | SI |
| VASO D'ESPANSIONE | SI |
| VALVOLA DI SOVRA PRESSIONE | SI |
| ASSORBIMENTO ELETTRICO | 60-390 |
| RUMOROSITA' | 36dB |
| EMISSIONI CO (MG/M³; 13% DI O2) | 19 |
| CAPACITA' SERBATOIO | 46 KG |
| EMISSIONI POLVERI (MG/M³; 13% DI O2) | 8 |
| DIAMETRO USCITA FUMI (MM) | 100 |
| TIRAGGIO MINIMO RICHIESTO (PA) | -10 |
| TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA) | -5 |
Classe Energetica: A+
