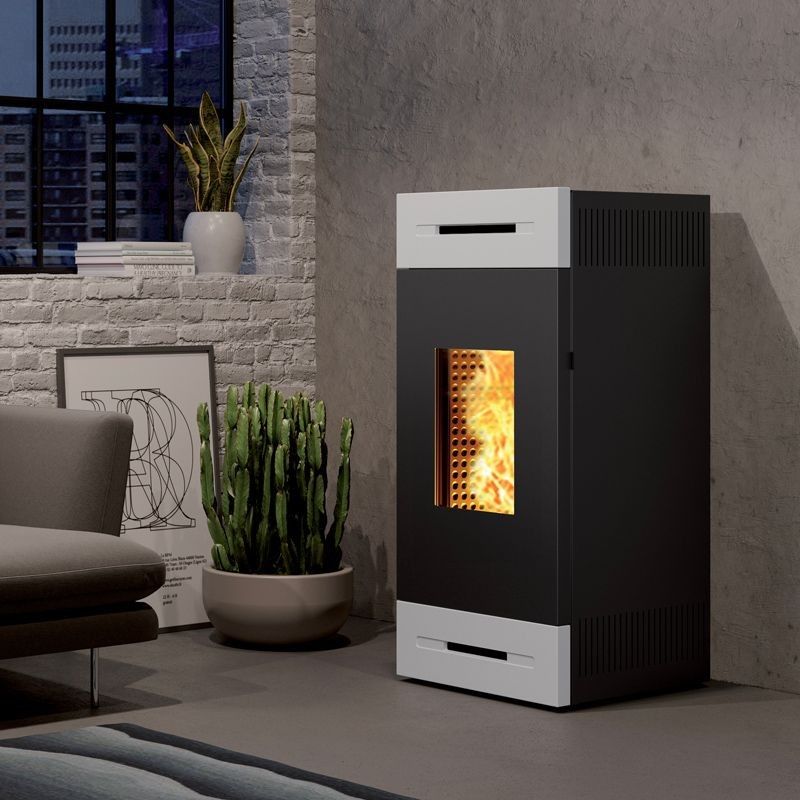

Montegrappa TILE MX16 hermetic - Pellet stove with ventilated and ducted hot air 3 fans. Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The covering of Tile M is in majolica, the structure in painted steel
Buy with confidence
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Airtight pellet stove with ducted ventilated air 3 TILE MX 16 motors L 63.5 x P 62.5 x H 120 cm
Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The covering of Tile M is in majolica, the structure in painted steel. Tile M is available in four colors: matt white, dove gray, gray, glossy burgundy.
Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons Intuitive software with setting of both the ambient temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the environment internal Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot Ignition resistance Ignition tube inserted inside the burner, always guarantees perfect ignitions of the product Deep cylindrical burner with holes for air inlet for the second combustion Electronic card with the possibility of managing external thermostats TUTOR new efficient combustion control system Modern removable hearth sides in cast iron Double ducting, served by 2 powerful independent centrifugal fans Continuous rotation gearmotor Double flue gas pass to the side of the combustion chamber Advanced side heat exchanger, in steel, consisting of tubular ducts immersed in the flue gas flow to ensure efficient heat exchange for heating the air channeled Heat exchanger, rear and above the combustion chamber, in steel, for heating the ambient air Probe to detect the ambient temperature Safety thermostat Safety vacuum gauge Ambient air tangential fan Large removable ash drawer Adjustable non-slip feet for correct leveling Door equipped with an advanced secondary air system Fully ducted combustion air that allows the stove to be certified hermetic Wi-Fi module (optional)
potenza termica globale (al focolare)
15,9
kW
potenza certificata
5,5 - 14,0
kW
CO misurato (al 13% di ossigeno)
0,0084
%
rendimento
88,0
%
consumo combustibile
1,23 - 3,42
kg/h
portata in massa dei fumi
4,7 - 10
g/s
temperatura dei fumi
119 - 210
°C
tiraggio (depressione al camino)
8
Pa
capacità serbatoio
30
Kg
autonomia
24 - 8,5
h
tubo uscita fumi
Ø 80
mm
ingresso aria per la combustione
Ø 60
mm
superficie riscaldabile
161
*mq
peso netto
124
kg
Classe Energetica: A+ Certificazione EcoDesign 2022 Livello di prestazione ambientale
