WALL BRACKET
STAINLESS STEEL FLUE
PAINTED BLACK HT01

Mono is the single-wall flue made of AISI 316L stainless steel with a BA (natural) finish, guaranteeing the highest performance and resistance to acid condensation.
It allows the construction of metal flues and chimneys both indoors and outdoors.
Thanks to the socket joint, they can be connected with 360° rotation, avoiding alignment problems typical of screw-on or combined systems.
When used in conjunction with generators that produce humid fumes, cooking vapors, or operate at positive pressure, the gasket (item DEM.G) must be used (not included).

The entire stainless steel line is certified according to European standard EN-1856-2:2009 and is guaranteed for 10 years.

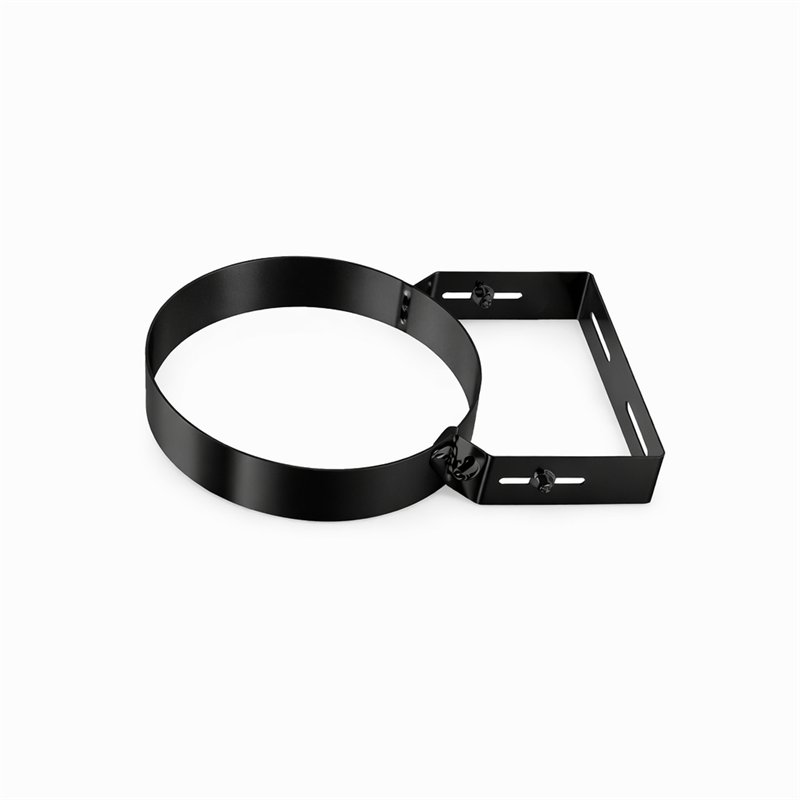

The wall bracket is used to anchor the flue to the wall. Allows for proper anchoring and positioning of the wall system thanks to three-axis adjustment. It does not have a load-bearing function.

The bracket can be extended with the CPR50 / CPR100 item.

Designation: Chimney system EN 1856-2:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040/050 AISI 304 L BA steel

Termini consegna materiale : 2 settimane

Certificazione : KIWA

Garanzia: 10 Anni
