The H30 Moia security cylinder is designed with a nickel-plated brass monobloc body and a rotor with 14 pins arranged on three rows, guaranteeing over 2 million combinations. Equipped with a central reinforcement and tempered steel pins, it offers high resistance to tearing and drilling. The reversible computerized point key can also be used with cylinder protections equipped with an increased pad
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)

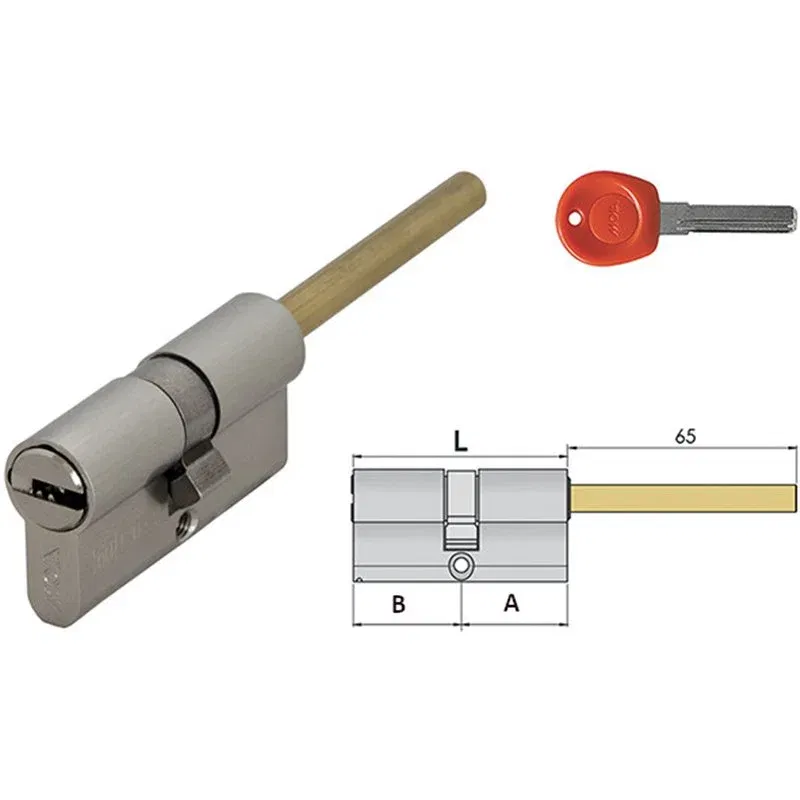

EUROPEAN PROFILE SECURITY CYLINDER
MOIA SERIES H30
KEY/SHANK
MOIA European profile security cylinders are made with a nickel-plated brass monobloc body.
At the center of the cylinder rotates a cam compliant with DIN standard, operated by a rotor with 14 pins arranged in three rows (7 active pins with spring and 7 passive pins), offering over 2 million possible combinations.
The cylinder is supplied with 5 master keys (orange or blue head) and 2 construction keys (black head). The special feature is that all 7 keys are active, and the construction keys can be deactivated with a dedicated on/off key.
The central reinforcement and the weakening pre-cut guarantee high resistance to tearing.
The tempered steel pins, present both in the front and rear of the cylinder, offer high resistance to drilling. The steel pins and the anti-rust springs ensure long life and resistance to corrosion. In addition, the shaped pins effectively counteract opening by bumping. The computerized point key, reversible, with long barrel, can also be used with cylinder guards equipped with an enlarged pad.
| CILINDRI MOIA C/P 30-30*POM 8023662304240 | H30+30KDCOD mm. 60L 30A 30B |
| CILINDRI MOIA C/P 35-30*POM 8023662304257 | H35+30KDCOD mm. 65L 35A 30B |
| CILINDRI MOIA C/P 40-30*POM 8023662304264 | H40+30KDCOD mm. 70L 40A 30B |
| CILINDRI MOIA C/P 45-30*POM 8023662304639 | H45+30KDCOD mm. 75L 45A 30B |
| CILINDRI MOIA C/P 50-30*POM 8023662304325 | H50+30KDCOD mm. 80L 50A 30B |
| CILINDRI MOIA C/P 60-30*POM 8023662304332 | H60+30KDCOD mm. 90L 60A 30B |
