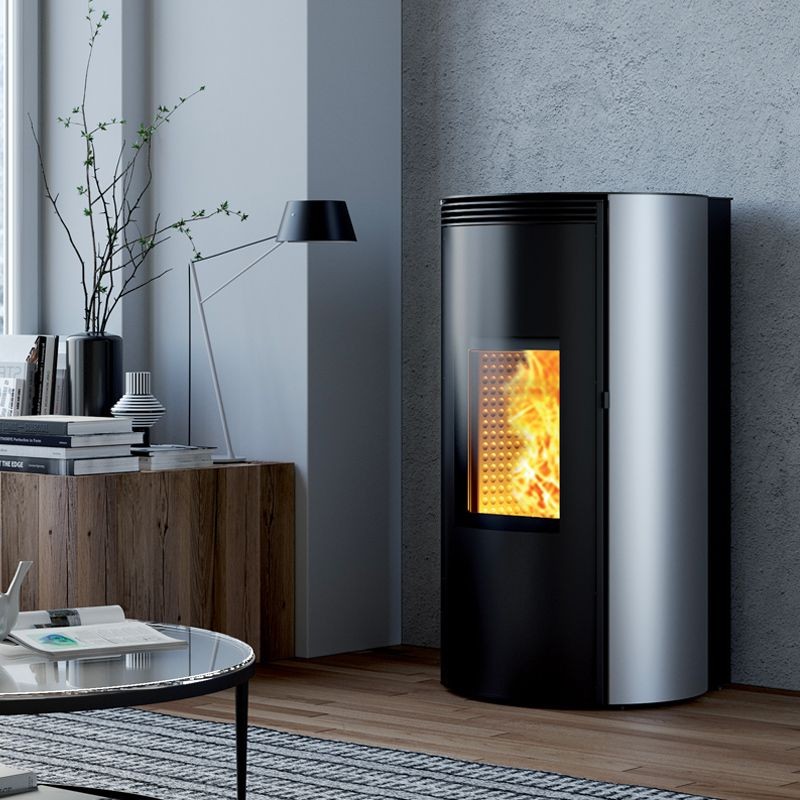

CUMA MW AUP self-cleaning IDRO hermetic pellet stove
L 64 x P 66 x H 120 cm

Cuma M is the stove with a circular shape and contemporary lines. It adapts perfectly to any environment, thanks to the modern and elegant design. The external door is made entirely of black painted glass. The structure and the covering are made of painted steel. The Cuma Evo upholstery is available in five colors: mocha, greige, white, metallic gray and black.

• Automatic burner cleaning system
• Ash discharge hopper
• Door with wonder effect glass
• Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
• Intuitive software with chronothermostat and possibility to set different types of systems
• Continuous rotation gearmotor
• Electronic card with the possibility of managing external thermostats
• Fully ducted combustion air which allows the stove to be certified hermetic
• Wi-Fi module (optional)
• Steel shell and tube heat exchanger with user-movable turbulators
• Deep cylindrical burner with holes for air inlet for the second combustion
• Optional domestic water kit (only on MW28 model)
• Ignition tube inserted inside the burner always guarantees perfect ignitions of the product
• TUTOR new efficient combustion control system
• Integrated ventilation kit

Safety thermostat

Safety vacuum gauge

Adjustable non-slip feet for correct leveling

10 power levels to ensure more efficient modulation

3 bar safety valve

Water pressure reading transducer

Integrated high efficiency circulator with bidirectional PWM electronic management

Expansion vessel with a capacity of 8 liters

Delivery water temperature probe

Return water temperature probe

Large removable ash drawer

Internal flue gas temperature and ambient temperature probe

Practical rear hydraulic connections

35 liter boiler

		MW20 Wi-Fi AUP EP	MW28 Wi-Fi AUP EP
Classe di qualità (D.M. 186 - 7/11/2017)
Potenza termica globale (al focolare)	19,5		27,9	kW
Potenza certificata	8,2 - 18,6		8,2 - 26,0	kW
Potenza certificata resa all'acqua	6,8 - 16,2		6,8 - 19,4	kW
CO misurato (al 13% di ossigeno)	0,0052		0,0066	%
Rendimento (η)	95		93	%
Particolato Primario (PP) al 13% di ossigeno	5		6	mg/Nm3
COT (al 13% di ossigeno)	2		2	mg/Nm3
Consumo combustibile	1,75 - 4,03		1,75 - 5,77	kg/h
Portata in massa dei fumi	6,0 - 12,0		6,0 - 15,2	g/s
Temperatura dei fumi	66 - 107		66 - 138	°C
Tiraggio (depressione al camino)	12		12	Pa
Sez. interna canna fumaria	Ø 120		Ø 120	mm
H. min. canna fumaria	4		4	mm
Capacità serbatoio	28,0		28,0	Kg
Autonomia	16,0 - 6,5		16,0 - 4,5	h
Tubo uscita fumi	Ø 100		Ø 100	mm
Ingresso aria per la combustione	Ø 60		Ø 60	mm
Superficie riscaldabile a potenza certificata	213		299	*mq
Peso netto - Peso con imballo	151 - 162		155 - 165	kg

Classe Energetica: A++
Certificazione EcoDesign 2022
Livello di prestazione ambientale
