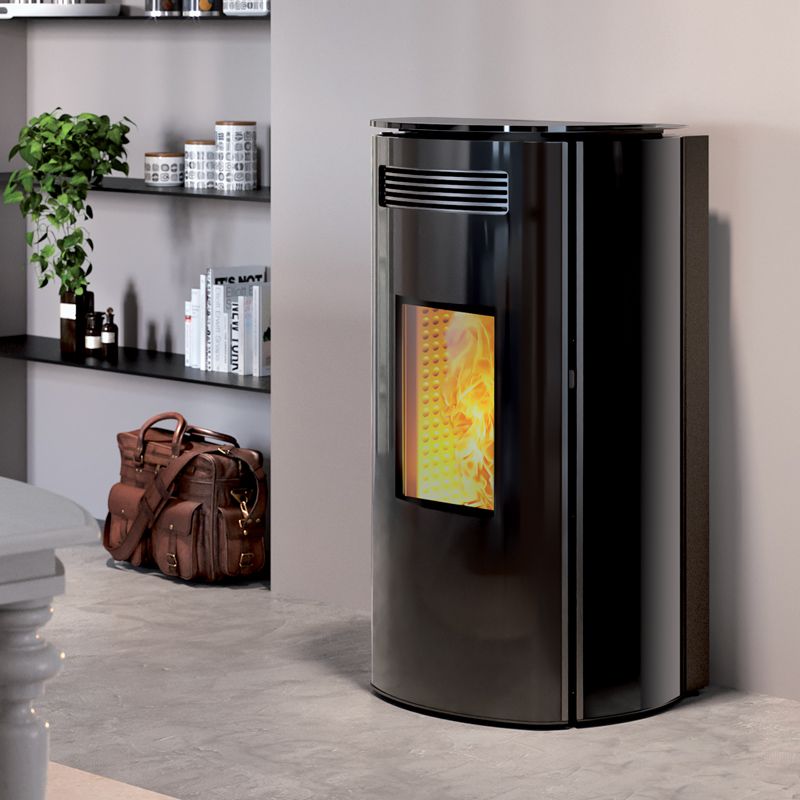

Self-cleaning pellet thermostove Caminetti Montegrappa BOLLA MW22 AU 5 stars
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Self-cleaning pellet stove IDRO hermetic BOLLA MW AUP
L 65 x D 62 x H 125 cm
"All glass" covering and curved structure with sliding top.
Automatic burner cleaning system
Ash discharge hopper
Wonder effect glass door
Control panel with backlit graphic display with TOUCH SCREEN digital icons
Intuitive software with chronothermostat and the possibility of setting different types of system
Continuously rotating gearmotor
Electronic board with the possibility of managing external thermostats
Fully ductable combustion air that allows the stove to be certified hermetic
Wi-Fi module (optional)
Steel tube bundle heat exchanger with user-movable turbulators
Deep cylindrical burner with holes for air entry for the second combustion
Optional sanitary water kit (only on the MW24 model)
Ignition tube inserted inside the burner always guarantees perfect ignition of the product
TUTOR new efficient combustion control system
Integrated ventilation kit
Safety thermostat
Safety vacuum gauge
Feet adjustable anti-slip for correct levelling
10 power levels to ensure more efficient modulation
3 bar safety valve
Water pressure reading transducer
Integrated high-efficiency circulator with bidirectional PWM electronic management
8-litre expansion vessel
Flow water temperature probe
Return water temperature probe
Large removable ash drawer
Internal smoke temperature and room temperature probe
Practical all
| potenza termica globale (al focolare) | 21,3 | kW |
| potenza certificata | 5,4 - 19,7 | kW |
| potenza resa all'ambiente | 0,9 - 2,3 | kW |
| potenza resa all'acqua | 4,5 - 17,4 | kW |
| CO misurato (al 13% di ossigeno) | 0,004 | % |
| rendimento | 92,4 | % |
| consumo combustibile | 1,17 - 4,39 | kg/h |
| portata in massa dei fumi | 6,8 - 14,3 | g/s |
| temperatura dei fumi | 72 - 129 | °C |
| tiraggio (depressione al camino) | 5 | Pa |
| capacità serbatoio | 28 | Kg |
| autonomia | 23,5 - 6 | h |
| tubo uscita fumi | Ø 100 | mm |
| ingresso aria per la combustione | Ø 60 | mm |
| superficie riscaldabile a potenza certificata | 226 | *mq |
| peso netto | 153 | kg |
Classe Energetica: A++
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
