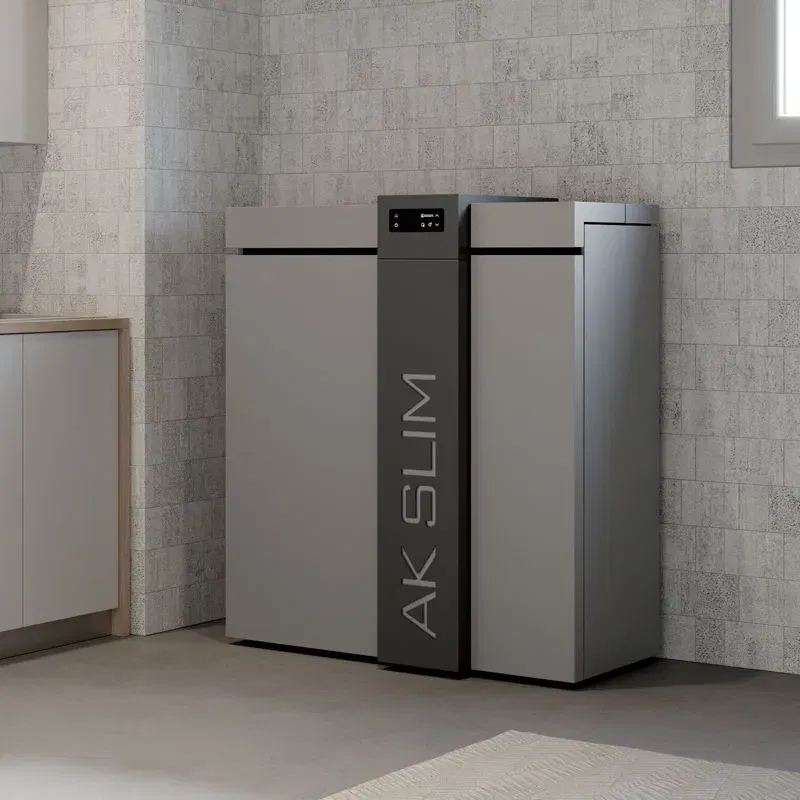

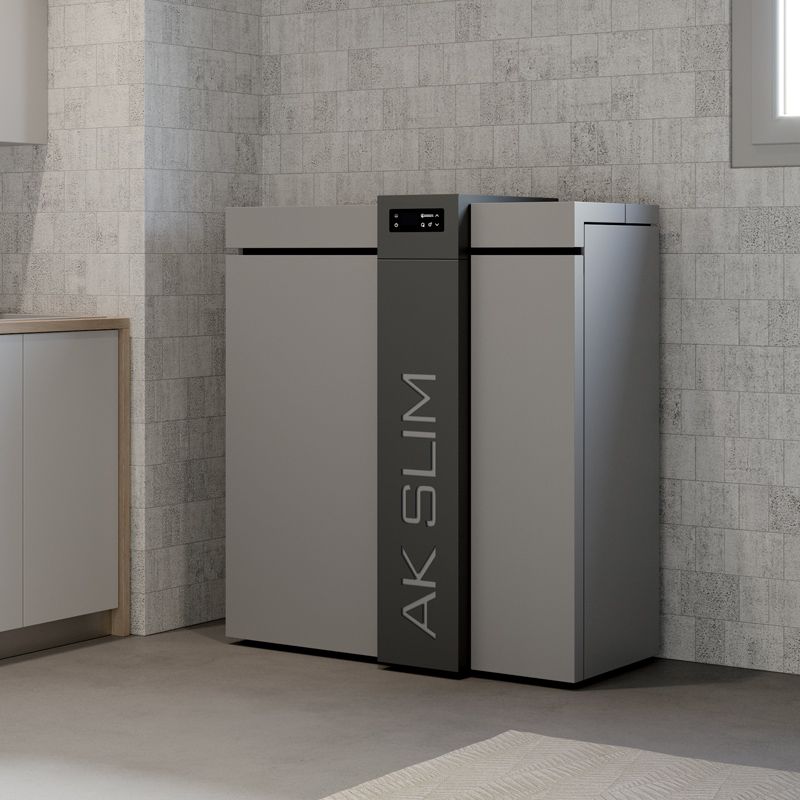

AK SLIM 25KW high efficiency pellet boiler
L 105 x D 55 x H 126 cm

High efficiency pellet boiler, for heating water, compact and with reduced depth.

TOUCH SCREEN control panel
10 power levels to ensure more efficient modulation
Intuitive software with chronothermostat and the possibility of setting different types of system
Continuously rotating gearmotor
Electronic board with the possibility of managing external thermostats
Wi-Fi module (optional)
Steel tube bundle heat exchanger with user-movable turbulators
Deep cylindrical burner with inclined bottom
Domestic water kit optional
Ignition tube inserted inside the burner always guarantees perfect ignition of the product
TUTOR new efficient combustion control system
Safety thermostat
Safety vacuum gauge
3 bar safety valve
Water pressure reading transducer
High efficiency integrated circulator with bidirectional PWM electronic management
8-litre capacity expansion vessel
Flow water temperature probe
Return water temperature probe
Integrated upper or rear flue gas exhaust with the possibility of installation up to 6 cm from the rear wall
Internal flue gas temperature probe
Practical hydraulic connections
Adjustable non-slip feet for correct levelling
60 litre boiler

Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
