Montegrappa EVOCA EVO NPS10 -Hot air pellet stove with intelligent SMART ventilation. Evoca adapts easily to both environments furnished in a classic style and to more modern ones. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval pattern.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)

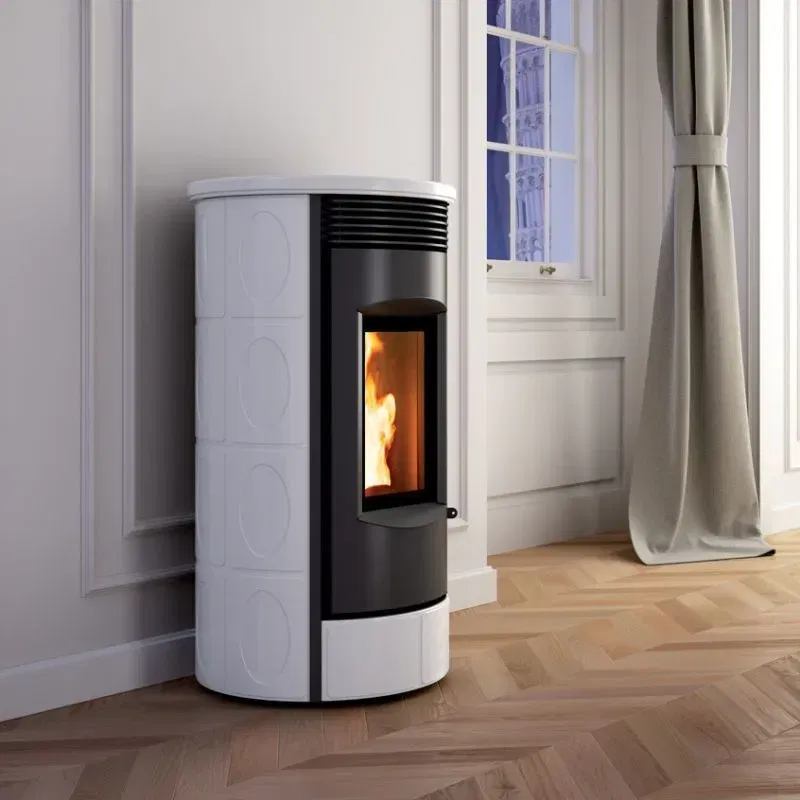

EVOCA EVO NPS10 ventilated air pellet stove
L 59 x P 55.5 x H 109 cm
Round shape and refined design, Evoca easily adapts to both environments furnished in a classic style and to more modern ones. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval pattern. The splay emphasizes the silk-screened glass and the wide view of the fire. Evoca has a steel structure and majolica cladding, and is available in three colors: glossy white, cream, glossy burgundy.
SMART ventilation: advanced software for the intelligent management of the air fan that allows the stove to work in
silent mode ensuring excellent comfort.
Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
Intuitive software with setting both the ambient temperature and the maximum operating power.
Equipped with STAND BY function to maintain the desired comfort of the internal environment
Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
Probe to detect the internal temperature of the stove
Continuous rotation gearmotor
Electronic card with the possibility of managing external thermostats
Deep cylindrical burner with inclined bottom and holes for air inlet for the second combustion
Ignition tube inserted inside the burner: always guarantees perfect ignitions of the product
| potenza termica globale (al focolare) | 10,2 | kW | |
| potenza certificata | 3,8 - 9,0 | kW | |
| CO misurato (al 13% di ossigeno) | 0,0089 | % | |
| rendimento | 88,0 | % | |
| consumo combustibile | 0,85 - 2,11 | kg/h | |
| portata in massa dei fumi | 3,4 - 6,2 | g/s | |
| temperatura dei fumi | 110 - 205 | °C | |
| tiraggio (depressione al camino) | 5 | Pa | |
| capacità serbatoio | 17 | Kg | |
| autonomia | 20 - 8 | h | |
| tubo uscita fumi | Ø 80 | mm | |
| ingresso aria per la combustione | 40 x 40 | mm | |
| superficie riscaldabile a potenza certificata | 103 | *mq | |
| peso netto | 69 | kg | |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
Specific References
Reference: 7294049000-2062916547
Brand: Caminetti Montegrappa
