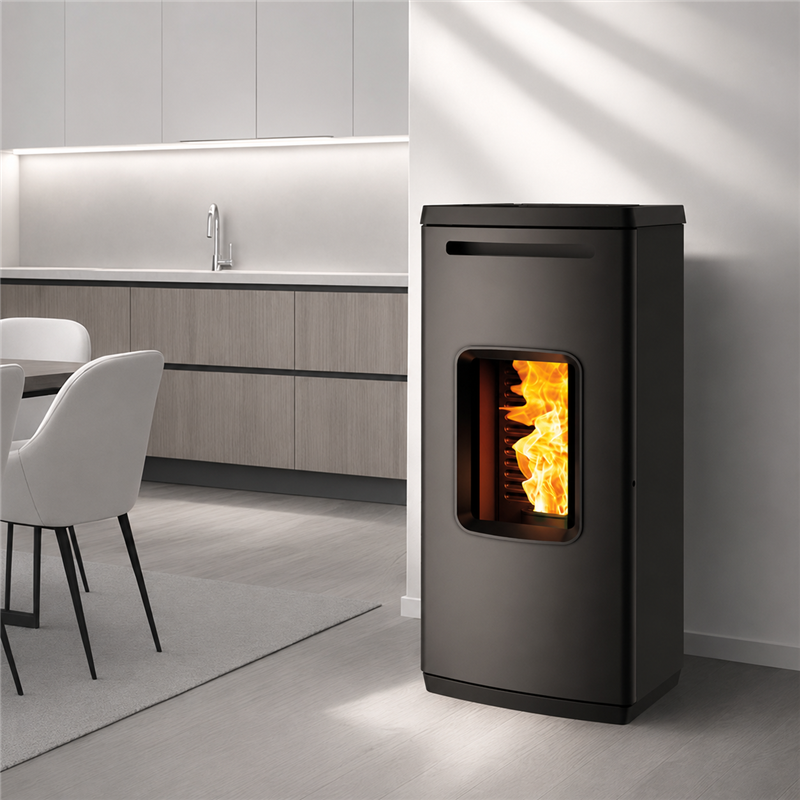

The Caminetti Montegrappa LINKA EP is a compact, high‑efficiency ventilated pellet stove designed to combine performance, smart control and modern aesthetics.

Its painted steel body and cast‑iron top ensure durability and thermal stability. The inclined lines of the top and base give the stove a dynamic look, while the inclined framed glass highlights the flame, turning it into a true decorative element.

As part of the Connect Series, LINKA EP includes:

• Integrated Wi‑Fi

• Bluetooth connectivity

• Dedicated mobile app

• Smart management of power, ventilation and scheduling

Available in two refined colors:

• Speckled grey

• Anthracite

With a nominal output of 8.5 kW, LINKA EP is suitable for heating 80–100 m², offering low consumption and efficiency above 90%.

Classe di qualità (D.M. 186 - 7/11/2017)
Potenza termica globale (al focolare)	10,1		kW
Potenza certificata	4,2 - 9,1		kW
CO misurato (al 13% di ossigeno)	0,0120		%
Rendimento (η)	90		%
Particolato Primario (PP) al 13% di ossigeno	5		mg/Nm3
COT (al 13% di ossigeno)	2		mg/Nm3
Consumo combustibile	0,93 - 2,03		kg/h
Portata in massa dei fumi	3,8 - 5,5		g/s
Temperatura dei fumi	87 - 148		°C
Tiraggio (depressione al camino)	5		Pa
Capacità serbatoio	16,5		Kg
Autonomia	17,5 - 8,0		h
Tubo uscita fumi	Ø 80		mm
Ingresso aria per la combustione	40 X 40		mm
Superficie riscaldabile a potenza certificata	104		*mq
Peso netto - Peso con imballo	108 - 119		kg
Dimensioni	L 46 x P 48 x H 109		cm

Classe Energetica: A+
