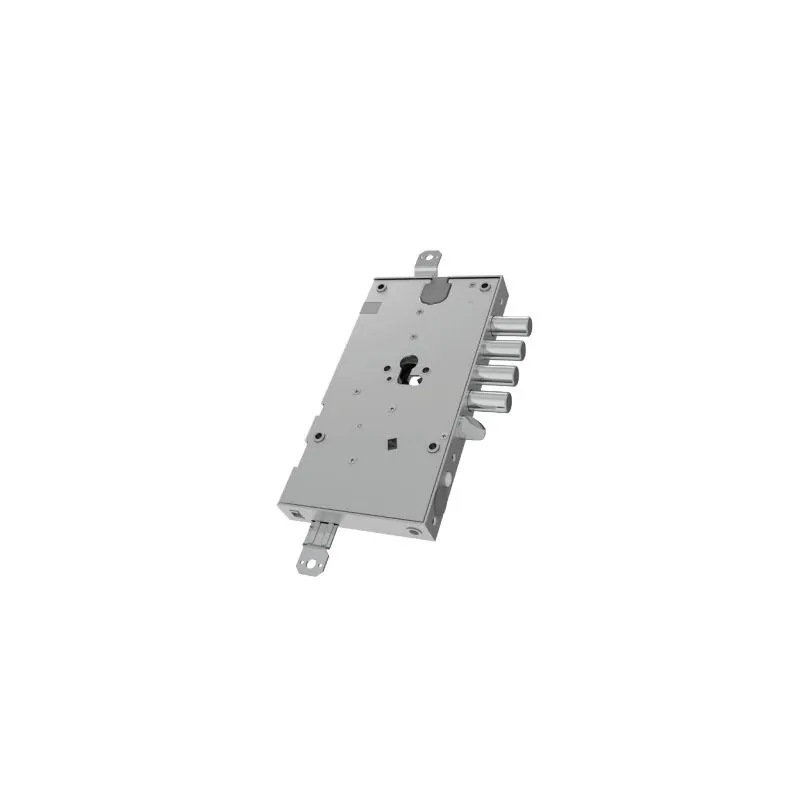

ELECTRONIC LOCK
MOTTURA BNOVA BT.M00 / BT.G00
TO APPLY
WITH QUICK RELEASE CONTROLLED BY HANDLE

The new Mottura B Technology range represents Mottura's continuous innovation in the motorized locks sector. Already in the study of the logo, we tried to identify what is the core of this new family of Mottura branded products, namely wireless transmission.

The new electronic access controls are completely without wiring, communicating with each other via BLE (Bluetooth low Energy) connection.

BASIC version; the lock can be managed with use only in proximity, from Mottura peripherals (via logic unit) or other peripherals with the help of the remote cable (supplied)
Not intended for use via APP

INTEGRATED BLUETOOTH version; the lock allows data transmission without wiring via BLE (Bluetooth low Energy) connection

Product tested according to standards
EN61000-6-1 : 2007
EN61000-6-3 : 2007/A1 : 2011

- Version to apply
- Double function: Entrance door or newel door
- QUICK release controlled by handle
- Prepared for European cylinder
- cylinder inlet mm. 63
- available latch center distances: 28mm or 37mm (see Versions)
- also available with anti-theft cylinder locking system
- Reversible half turn diam.20mm operated by cylinder and handle square
- Magnetic door status sensor
- complete with remote control cable 99.802 to be combined with internal button art. 99,689/739/759/792

Battery operated via battery holder 99703 - 99704 (not included)
or
Mains operation with cable 99801 and power supply 99798 (not included)

Important:
THE LOCK DOES NOT INCLUDE CYLINDERS AND DEFENDERS
