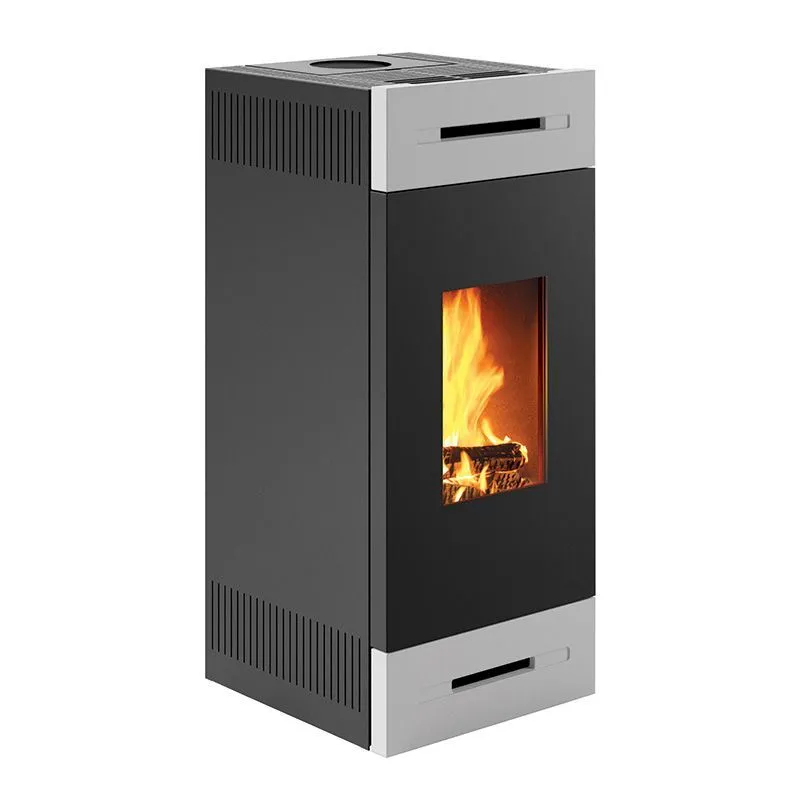

Montegrappa TILE M L9V kw 5-star certified - Wood-burning stove with a square shape and rigorous design, the front and plinth are decorated with a geometric motif.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Ventilated hot air wood stove TILE ML 9V
L 52 x D 58 x H 120 cm 5 STARS
Square shape and rigorous design, the front and plinth are decorated with a geometric pattern.
The covering of Tile is in majolica, the structure in painted steel.
Tile M is available in four colours: matt white, taupe, grey, glossy bordeaux.
Structure in painted steel sheet.
Deep combustion chamber lined with refractory material to ensure optimal combustion.
Door with large ceramic glass for a complete view of the fire.
Combustion air registers for more accurate combustion management.
Combustion air that can be completely ducted which allows the stove to be certified hermetic.
Secondary air inlet ducts for post-combustion and for the ceramic glass self-cleaning system.
Cast iron ash-falling grate for maximum strength and durability.
Large extractable ash drawer for maximum practicality of use.
Thermostatic probes for the automatic start of the fans.
Fan speed adjustment devices to customize ventilation.
Tangential ambient air fan.
Non-slip adjustable feet for correct levelling.
| potenza termica globale (al focolare) | 9,4 | kW | |||
| potenza certificata | 8,0 | kW | |||
| CO misurato (al 13% di ossigeno) | 0,05 | % | |||
| rendimento | 85,1 | % | |||
| consumo combustibile | 2,2 | kg/h | |||
| portata in massa dei fumi | 7,2 | g/s | |||
| temperatura dei fumi | 197 | °C | |||
| tiraggio (depressione al camino) | 10 | Pa | |||
| tubo uscita fumi | Ø 150 | mm | |||
| superficie riscaldabile a potenza certificata | 92 | *mq | |||
| peso netto | 135 | kg | |||
| peso con imballo | 147 | kg | |||
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
PER I TEMPI DI CONSEGNA CONSULTARE SEMPRE IL NOSTRO SERVIZIO CLIENTI PRIMA DI EFFETTUARE L'ORDINE
