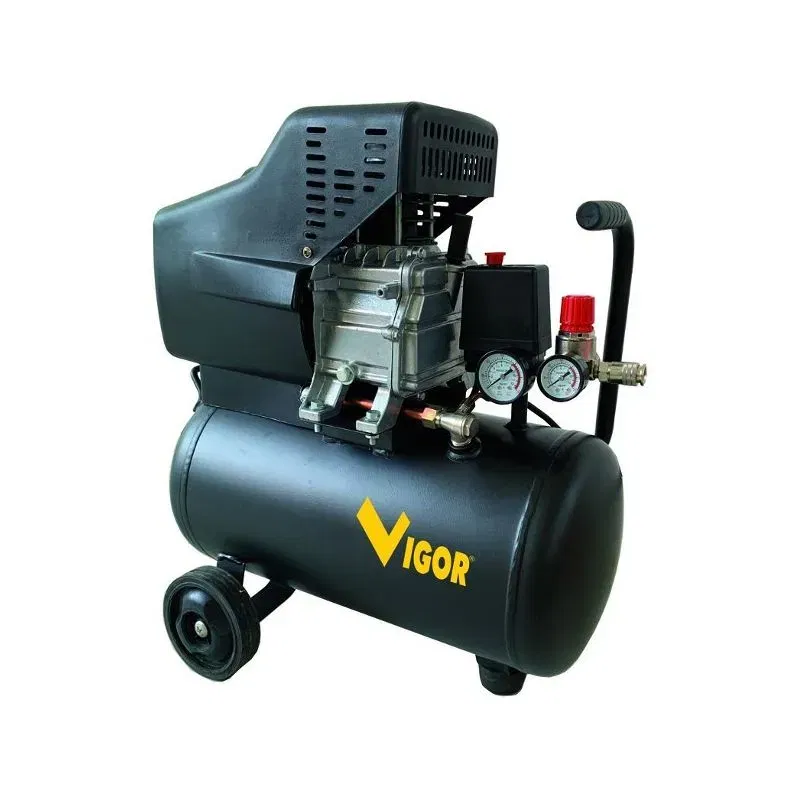

Vigor VCA-24L 24-litre air compressor

The Vigor VCA-24L is a direct-drive air compressor with a 24-litre tank, suitable for maintenance, DIY work, inflation, blowing and use with pneumatic equipment compatible with the compressor's technical specifications.

The motor delivers 1.5 kW, equivalent to 2 HP. The compressor features a single-cylinder configuration operating at 2800 rpm, with a declared air intake capacity of 178 l/min and a maximum pressure of 0.8 MPa, equivalent to 8 bar.

Main features

• Tank capacity: 24 litres
• Power: 1.5 kW / 2 HP
• Cylinders: 1
• Drive: direct
• Speed: 2800 rpm
• Maximum pressure: 0.8 MPa / 8 bar
• Air intake: 178 l/min
• Quick couplings: 2

Using the Vigor VCA-24L compressor

The 24-litre tank makes the VCA-24L a practical solution for a variety of maintenance jobs and intermittent applications. It can be used for inflation, blowing and compressed-air cleaning, as well as with compatible pneumatic accessories.

Before connecting a pneumatic tool, always check the air consumption required by the equipment and compare it with the compressor's specifications. Tools requiring high airflow or continuous operation may require a compressor with greater capacity and performance.

Vigor VCA-24L technical specifications

How to choose an air compressor

Tank capacity is not the only parameter to consider when choosing an air compressor. It is also important to evaluate the required pressure, the tool's air consumption and frequency of use.

With its 24-litre tank and direct-drive configuration, the Vigor VCA-24L is a compact solution for users requiring compressed air for occasional work and maintenance activities.

Frequently asked questions about the Vigor VCA-24L

What is the tank capacity?

The Vigor VCA-24L is equipped with a 24-litre tank.

What is the power of the Vigor VCA-24L?

The declared power is 1.5 kW, equivalent to 2 HP.

What is the maximum pressure?

The declared maximum pressure is 0.8 MPa, equivalent to 8 bar.

What is the air intake capacity?

The compressor has a declared air intake capacity of 178 l/min.

Can pneumatic tools be used with this compressor?

Yes, provided that the tool's air consumption is compatible with the compressor's technical specifications. High-consumption tools or equipment intended for continuous operation may require a larger compressor.

Manufacturer code: 56350-12
EAN: 8011779089327
