Montegrappa TILE MP13 AUP Hermetic Self-cleaning - Ventilated hot air pellet stove. Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The covering of Tile M is in majolica, the structure in painted steel
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)

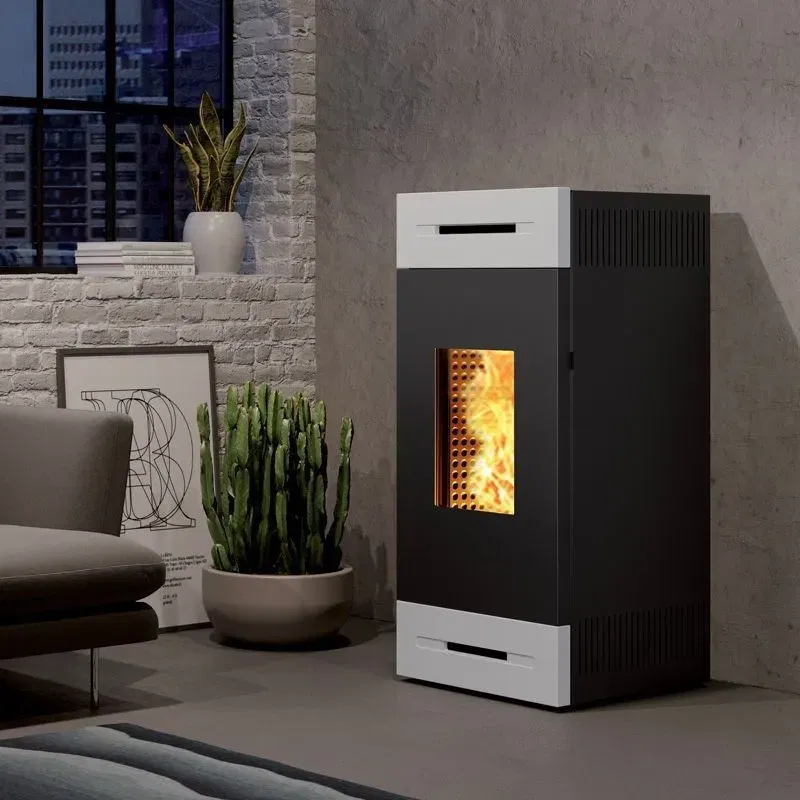

Self-cleaning pellet stove hermetic ventilated air TILE MP 13 AUP
L 52 x P 53.5 x H 120 cm
Square shape and rigorous design, the front and the plinth are decorated with a geometric pattern. The covering of Tile M is in majolica, the structure in painted steel. Tile M is available in four colors: matt white, dove gray, gray, glossy burgundy.
Automatic burner cleaning system
Ash discharge hopper
Door with wonder effect glass
Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
Intuitive software with setting of both the ambient temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the indoor environment
Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
Gearmotor
Electronic card with the possibility of managing external thermostats
Deep cylindrical burner with holes for air inlet for the second combustion
Ignition tube inserted inside the burner, always guarantees perfect ignitions of the product
TUTOR efficient combustion control system
Removable cast iron hearth back
Smoke pass back to the combustion chamber
Steel heat exchanger, for heating the ambient air
Probe to detect the ambient temperature
Safety thermostat
Safety vacuum gauge
Ambient air tangential fan
Large removable ash drawer
Adjustable non-slip feet for correct leveling
Wi-Fi module (optional)
| potenza termica globale (al focolare) | 12,8 | kW | |
| potenza certificata | 4,9 - 11,3 | kW | |
| CO misurato (al 13% di ossigeno) | 0,02 | % | |
| rendimento | 88,0 | % | |
| consumo combustibile | 1,07 - 2,66 | kg/h | |
| portata in massa dei fumi | 4,3 - 7,4 | g/s | |
| temperatura dei fumi | 106 - 203 | °C | |
| tiraggio (depressione al camino) | 6 | Pa | |
| capacità serbatoio | 30 | Kg | |
| autonomia | 28 - 11 | h | |
| tubo uscita fumi | Ø 80 | mm | |
| ingresso aria per la combustione | Ø 60 | mm | |
| superficie riscaldabile | 130 | *mq | |
| peso netto | 114 | kg | |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
