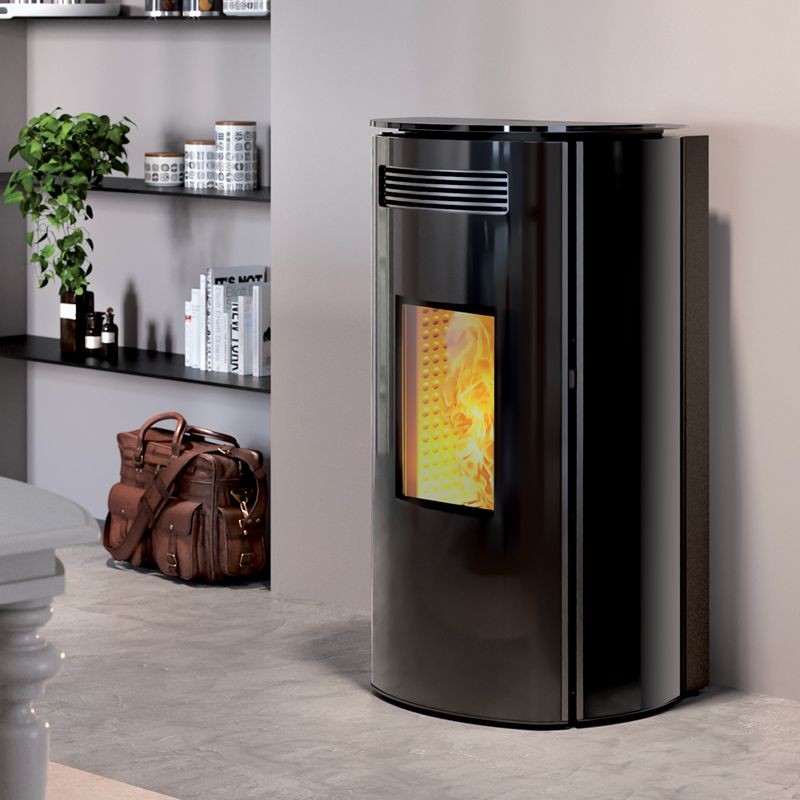

Montegrappa BOLLA MX16 E hermetic - Pellet stove with ventilated and ducted hot air 3 fans. "All glass" cladding and curved shape structure with sliding top.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Airtight pellet stove with ducted ventilated air BOLLA MX 16 E 3 motors
L 63 x P 60 x H 118 cm
"All glass" cladding and curved shape structure with sliding top.
Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
Intuitive software with setting of both the ambient temperature and the maximum operating power.
Equipped with STAND BY function to maintain the desired comfort of the environment
internal
Chronothermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot
Ignition resistance
Ignition tube inserted inside the burner, always guarantees perfect ignitions of the product
Deep cylindrical burner with holes for air inlet for the second combustion
Electronic card with the possibility of managing external thermostats
TUTOR new efficient combustion control system
Modern removable hearth sides in cast iron
Double ducting, served by 2 powerful independent centrifugal fans
Continuous rotation gearmotor
Double flue gas pass to the side of the combustion chamber
Advanced side heat exchanger, in steel, consisting of tubular ducts immersed in the flue gas flow to ensure efficient heat exchange for heating the air
channeled
Heat exchanger, rear and above the combustion chamber, in steel, for heating the ambient air Probe to detect the ambient temperature
Safety thermostat
Safety vacuum gauge
Ambient air tangential fan
Large removable ash drawer
Adjustable non-slip feet for correct leveling
Door equipped with an advanced secondary air system
Fully ducted combustion air that allows the stove to be certified hermetic
Wi-Fi module (optional)
| MX16 E | |||
| Classe di qualità (D.M. 186 - 7/11/2017) |  | ||
| potenza termica globale (al focolare) | 15,3 | kW | |
| potenza certificata | 5,5 - 13,5 | kW | |
| CO misurato (al 13% di ossigeno) | 0,0187 | % | |
| rendimento (η) | 88,1 | % | |
| PP Particolato Primario (al 13% di ossigeno) | 14 | mg/Nm3 | |
| COT (al 13% di ossigeno) | 2 | mg/Nm3 | |
| consumo combustibile | 1,23 - 3,17 | kg/h | |
| portata in massa dei fumi | 4,7 - 8,8 | g/s | |
| temperatura dei fumi | 119 - 189 | °C | |
| tiraggio (depressione al camino) | 8 | Pa | |
| capacità serbatoio | 30 | Kg | |
| autonomia | 24 - 9 | h | |
| tubo uscita fumi | Ø 80 | mm | |
| ingresso aria per la combustione | Ø 60 | mm | |
| superficie riscaldabile | 155 | *mq | |
| peso netto | 124 | kg | |
| peso con imballo | 135 | kg | |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
