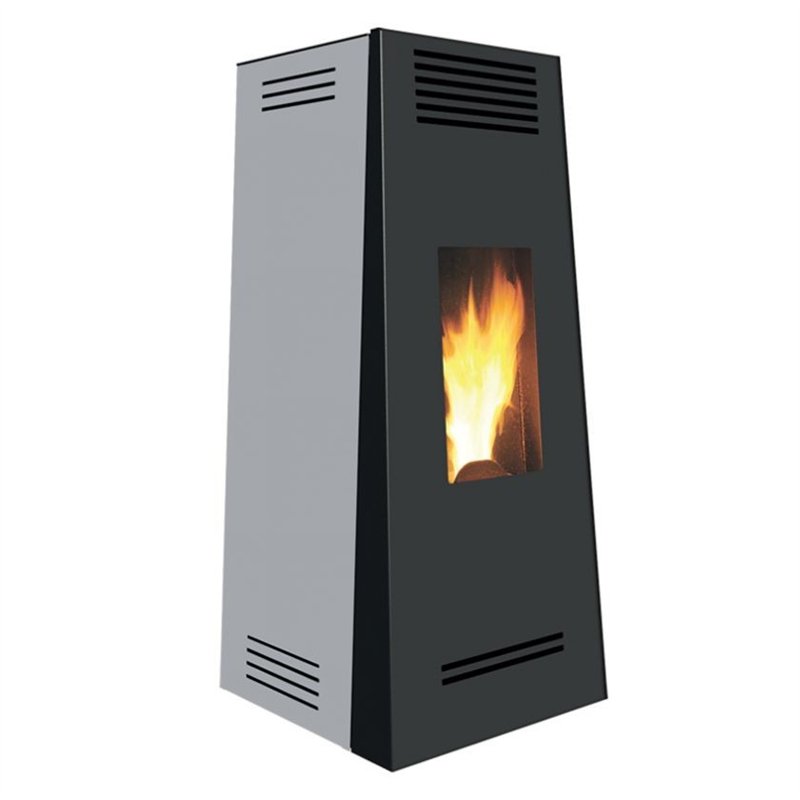

TIMBRO NXS 10 EVO pellet stove with ventilated and ducted air
L 46 x D 52 x H 109 cm

The trapezoidal shape, the inclined front, the large buttonholes distinguish the contemporary design of Timbro Evo, designed to fit perfectly into environments with modern and minimal furnishings. The structure and the covering are in painted steel.
The combustion chamber is decorated with an elegant motif.
The upholstery of Timbro Evo is available in two colours: metallic gray and black.

Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons

SMART ventilation: advanced software for intelligent management of the ambient air fan which allows the stove to operate in silent mode ensuring excellent comfort

Intuitive software with setting of both ambient temperature and maximum operating power. Equipped with STAND-BY function to maintain the desired comfort of the internal environment

Chronothermostat with settable temperature and with the possibility of choosing the operating power for each programmed time slot

Continuous rotation gear motor

Electronic card with the possibility of managing external thermostats

Cylindrical cast iron burner equipped with flame arrester deflector

Ignition tube inserted inside the burner, always guarantees perfect ignition of the product

TUTOR efficient combustion control system

Modern removable hearth sides in cast iron

Double ducting, served by 2 independent centrifugal fans

Double flue lateral to the combustion chamber

Advanced lateral heat exchanger, in steel, composed of tubular ducts and fins communicating between the sides of the combustion chamber and the external walls, for heating the ducted air

Heat exchanger, rear and above the combustion chamber, in steel, for heating the ambient air

Probe to detect the ambient temperature

Safety thermostat

Safety pressure gauge

Tangential ambient air fan

Removable ash drawer

Non-slip adjustable feet for correct levelling

Wi-Fi module (optional)

Classe di qualità (D.M. 186 - 7/11/2017)
potenza termica globale (al focolare)	10,1		kW
potenza certificata	4,0 - 9,0		kW
potenza resa alla canalizzazione	2,5 + 2,5 (55%)		kW
CO misurato (al 13% di ossigeno)	0,02		%
rendimento	89		%
consumo combustibile	0,91 - 2,1		kg/h
portata in massa dei fumi	3,2 - 6,8		g/s
temperatura dei fumi	169		°C
tiraggio (depressione al camino)	7		Pa
capacità serbatoio	17		Kg
autonomia	19 - 8		h
tubo uscita fumi	Ø 80		mm
ingresso aria per la combustione	Ø 60		mm
superficie riscaldabile a potenza certificata	103		*mq
peso netto	80		kg
peso con imballo	91		kg

Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
