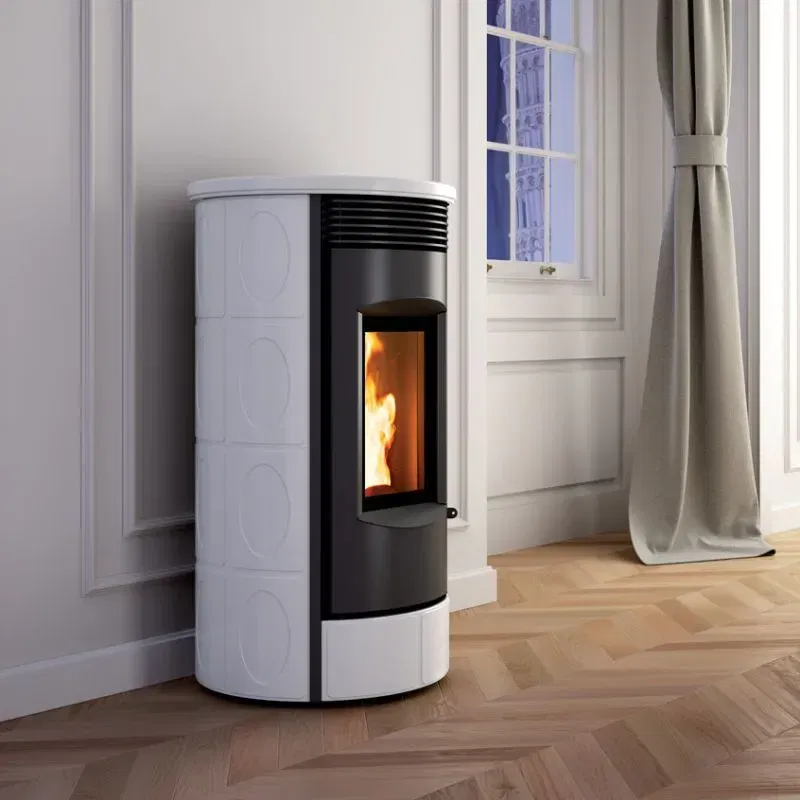

Montegrappa EVOCA NXS EVO 10.1 Kw 5 STARS - Hot air pellet stove with intelligent ducted SMART ventilation. Round shape and sophisticated design, Evoca easily adapts to both classically furnished and more modern environments. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval motif.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Pellet stove HERMETIC ventilated and ducted air EVOCA NXS10 EVO
L 59 x D 54 x H 109 cm
Round shape and sophisticated design, Evoca easily adapts to both classically furnished and more modern environments. The sides, the top and the plinth are covered in majolica. The sides are engraved with an elegant oval motif. The splay emphasizes the silk-screened glass and the wide view of the fire. Evoca has a steel structure and majolica cladding, and is available in three colours: glossy white, cream, glossy bordeaux.
- Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
- SMART ventilation: advanced software for intelligent management of the room air fan which allows the stove to operate in silent mode ensuring excellent comfort
- Intuitive software with setting of both ambient temperature and maximum operating power. Equipped with STAND-BY function to maintain the desired comfort of the internal environment
- Chronothermostat with settable temperature and with the possibility of choosing the operating power for each programmed time band
- Continuous rotation gear motor
- Electronic card with the possibility of managing external thermostats
- Cylindrical cast iron burner equipped with flame arrester deflector
- Ignition tube inserted inside the burner, always guarantees perfect ignition of the product
- TUTOR efficient combustion control system
- Modern removable hearth sides in cast iron
- Double ducting, served by 2 independent centrifugal fans
- Double flue pass lateral to the combustion chamber
- Advanced lateral heat exchanger, in steel, composed of tubular ducts and fins communicating between the sides of the combustion chamber and the external walls, for heating the ducted air
- Heat exchanger, rear and above the combustion chamber, in steel, for heating the ambient air
- Probe to detect the ambient temperature
- Safety thermostat
- Safety pressure gauge
- Tangential ambient air fan
- Removable ash drawer
- Adjustable non-slip feet for correct levelling
- Wi-Fi module (optional)
| Classe di qualità (D.M. 186 - 7/11/2017) |  | ||
| potenza termica globale (al focolare) | 10,1 | kW | |
| potenza certificata | 4,0 - 9,0 | kW | |
| potenza resa alla canalizzazione | 2,5 + 2,5 (55%) | kW | |
| CO misurato (al 13% di ossigeno) | 0,02 | % | |
| rendimento | 89 | % | |
| consumo combustibile | 0,91 - 2,1 | kg/h | |
| portata in massa dei fumi | 3,2 - 6,8 | g/s | |
| temperatura dei fumi | 169 | °C | |
| tiraggio (depressione al camino) | 7 | Pa | |
| capacità serbatoio | 17 | Kg | |
| autonomia | 19 - 8 | h | |
| tubo uscita fumi | Ø 80 | mm | |
| ingresso aria per la combustione | Ø 60 | mm | |
| superficie riscaldabile a potenza certificata | 103 | *mq | |
| peso netto | 80 | kg | |
| peso con imballo | 91 | kg | |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
Data sheet
