Reduced 90 gradi T-pipe SINGLE-wall flue MONO De Marinis
  • Reduced 90 gradi T-pipe SINGLE-wall flue MONO De Marinis
  • Reduced 90 gradi T-pipe SINGLE-wall flue MONO De Marinis

Reduced 90 gradi T-pipe SINGLE-wall flue MONO De Marinis

700.MTRC110
De Marinis

Reduced 90 gradi T-pipe SINGLE-wall flue MONO De Marinis

Attacco
Diametro
€26.09
€20.87Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

LOWERED 90 ° T FITTING
STAINLESS STEEL CHIMNEY - SINGLE WALL
MONO SYSTEM


Mono is the single-walled flue in stainless steel
Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
Allows the creation of flues and metal chimneys both indoors and outdoors.
Thanks to the cup joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwed or combined systems.
In the case of use in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The whole MONO INOX line is certified according to European standard EN-1856-2: 2009 and is guaranteed for 10 years


The T-fitting allows the connection between the vertical flue and the horizontal smoke duct
The fitting has a reduced height to allow mounting on stoves or boilers with smoke outlet facing the ground

Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040 / 050 AISI 316 L BA steel

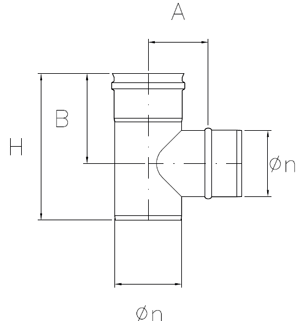

 Cod.ØnHABI
Acciaio InoxMTRC1001002209012045
Acciaio InoxMTRC1101102209512045
Acciaio InoxMTRC12012022010012045

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 anni



Product Details
700.MTRC110

Data sheet

System
Single wall
Component
Raccordo a T
Material
AISI316 stainless steel

Specific References

ean13
2002001923669
MPN
MTRC
Attachments
Download
MONO series technical data sheet

MONO series technical data sheet

Download (73KB)
DOP Mono Inox series

DOP Mono Inox series

Download (128.61KB)
