Terminal box with circular single-wall flue outlet MONO De Marinis Inox
  • Terminal box with circular single-wall flue outlet MONO De Marinis Inox
  • Terminal box with circular single-wall flue outlet MONO De

Terminal box with circular single-wall flue outlet MONO De Marinis Inox

CATE

Terminal box with circular single-wall flue outlet MONO De Marinis Inox

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Base dimension of the longest side included between
Attacco
Diametro
€176.46
€141.17 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
TERMINAL BOX
STAINLESS STEEL CHIMNEY - SINGLE WALL
MONO SYSTEM

Mono is the single-walled flue in stainless steel
Made entirely of AISI 316L stainless steel with BA finish, it guarantees the highest performance and resistance to acid condensation.
Allows the creation of flues and metal chimneys both indoors and outdoors.
Thanks to the cup joint, they can be connected with the possibility of 360 ° rotation avoiding alignment problems typical of screwed or combined systems.
In the case of use in combination with generators that produce humid fumes, cooking vapors or that operate with positive pressures, the gasket (art. DEM.G) not included must be used
The whole MONO INOX line is certified according to European standard EN-1856-2: 2009 and is guaranteed for 10 years


The terminal box with female circular outlet is used for the recovery of masonry chimneys that are not suitable for regulatory requirements
The element is made to order according to the measurements indicated, and it is possible to create different basic sizes also rectangular (contact our sales service)



Designation: Chimney system EN 1856-2: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type and thickness: L50040 / 050 AISI 316 L BA steel

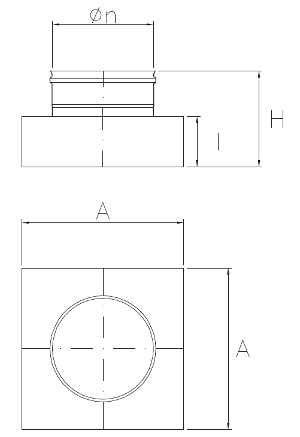

  Cod. Øn max A max B max H I
Acciaio Inox CATE1 150 170 170 180 100
Acciaio Inox CATE2 200 220 220 180 100
Acciaio Inox CATE3 250 270 270 180 100
Acciaio Inox CATE4 300 320 320 180 100
Acciaio Inox CATE5 350 370 370 180 100
Acciaio Inox CATE6 400 420 420 180 100
Acciaio Inox CATE7 450 470 470 180 100
Acciaio Inox CATE8 500 650 650 180 100


* La quota H è indicativa e può variare nel caso di dimensioni A e B diverse da quanto previsto come standard

** Le quote A e B, nonchè il diametro tondo, possono essere variati sino al valore massimo indicato; è possibile realizzare sezioni rettangolari - contattare il nostro servizio di vendita

Termini consegna materiale : 10 giorni lavorativi

Certificazione : KIWA

Garanzia: 10 Anni

SPECIFICARE SU NOTE ORDINE MISURA BASE (QUOTA A e B) E DIAMETRO NOMINALE Ø n


NON VENDIBILE CON PAGAMENTO CONTRASSEGNO


ARTICOLO SPECIALE REALIZZATO SU MISURA - NON RESTITUIBILE


Product Details
CATE

Data sheet

System
Single wall
Component
Cassetta
Material
AISI304 stainless steel
AISI316 stainless steel

Specific References

EAN13
2002000093769
MPN
CATE
Attachments
Download
MONO series technical data sheet

MONO series technical data sheet

Download (73KB)
DOP Mono Inox series

DOP Mono Inox series

Download (128.61KB)
