90 ° BEND WITH INSPECTION
IN BLACK ENAMELED STEEL
DESIGN WOOD SERIES

The DESIGN WOOD line includes components for the construction of internal flues that can be used in combination with wood stoves, fireplaces, stoves for dry and wet fumes, and resistant to condensation with V2 certification.
Structure in enamelling steel with a minimum thickness of 0.8mm including the thickness of the enamel, welded along the entire length and enamelled internally and externally, resistant to operating temperatures of 600 ° C.
The grafts are by means of a tapered male
Total compatibility with the grafts of the MONO and ISO flues
The products are CE marked according to the European standard EN 1856-2: 2009

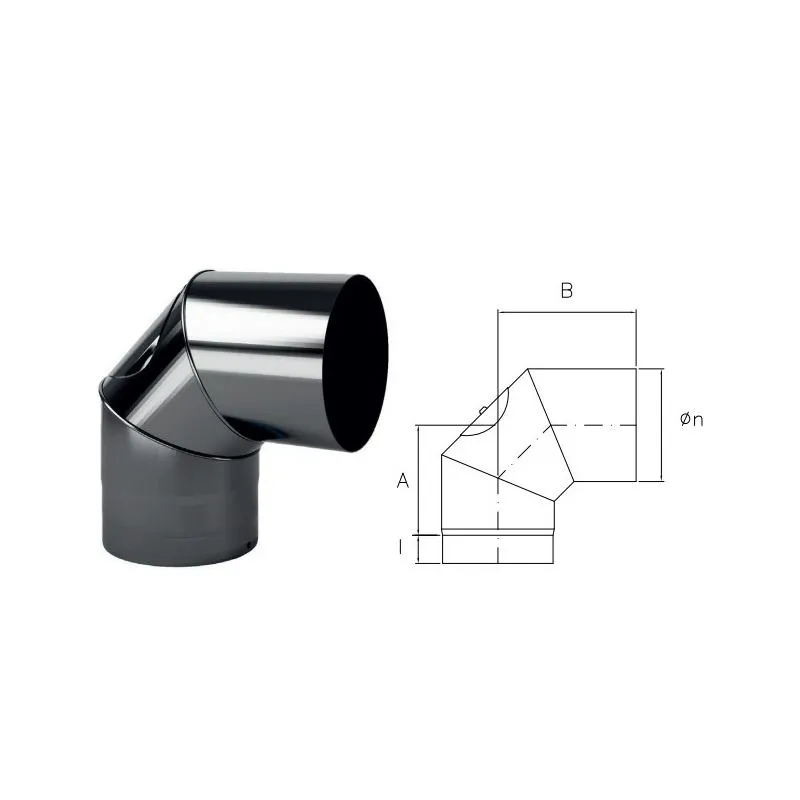

The 90 ° bend allows the deviation or movement of the flue system; it is equipped with an INSPECTION cap

Designation: Chimney system EN 1856-2: 2009
Temperature class: T600
Pressure class: N1
Condensation resistance: D
Corrosion resistance class: V2
Resistance to soot fire: G800M

Material type and thickness: L80

Delivery terms: 1 week

Certification CE

Warranty: 2 years
