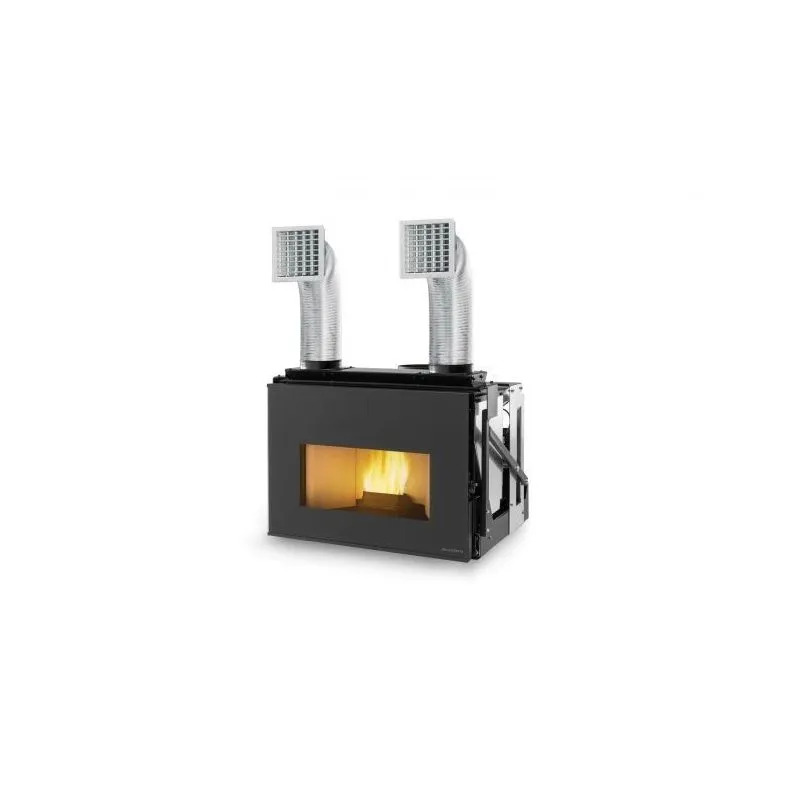

Palazzetti Ecofire A70 - Efficient and compact air pellet fireplace insert
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)
Ecofire for insertion AC70 air
70 x 60 x 59 cm - 110 kg
Pellet firebox with limited overall dimensions which makes it ideal both for restoring old open fireplaces and for building a new fireplace.
Equipped with channeling with 2 motors. The insert comes with tubes and nozzles
The interior is in Thermofix with a cast iron base and removable ash drawer.
• air pellet insert
• Balanced Door, door with self-balancing system
• opening with a cold hand
• hot air channeling managed by two centrifugal fans simultaneously, and set up with two Ø14 cm outlets (including pipes and vents)
• possibility of channeling the combustion air directly from the outside
• digital display for programming and management of operating parameters, with touch controls
• predisposition for Connection Box
• innovative tube boiler with turbulence system
• cast iron brazier and Thermofix® walls
• pellet level sensor
• 70x60x59: measures without front loading drawer (optional)
• 70x60x63: measures with front loading drawer (optional)
Potenza termica nominale | 9 kW |
---|---|
Rendimento alla potenza termica nominale | 90.7 % |
Autonomia di funzionamento max | 23 h |
Capacità serbatoio di alimentazione | 15,15 kg |
Consumo orario pellet | 0.643 - 2.05 kg/h |
Diametro uscita fumi | ø 8 cm |
VENTILATED AIR Forced air circulation products are equipped with a fan that quickly spreads the hot air produced by combustion throughout the room. Thanks to the electronic control of the unit, it is possible to manage the power and speed of the fan according to personal heat needs | |
DUCTED AIR HEATING Product equipped with a fan, which with an appropriate channeling allows to heat several rooms at the same time. | |
HEARTH IN THERMOFIX® Thermofix®: a special refractory cement with very high accumulation that optimizes radiation and improves combustion, guaranteeing high yields. Thanks to its light color it emphasizes the brightness of the flame. | |
CONNECTION BOX AND PALAZZETTI APP It allows you to manage the main operating parameters of the stove via smartphone, and thanks to a dedicated app, both locally (such as a remote control) and remotely (via an internet connection |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale «««««
