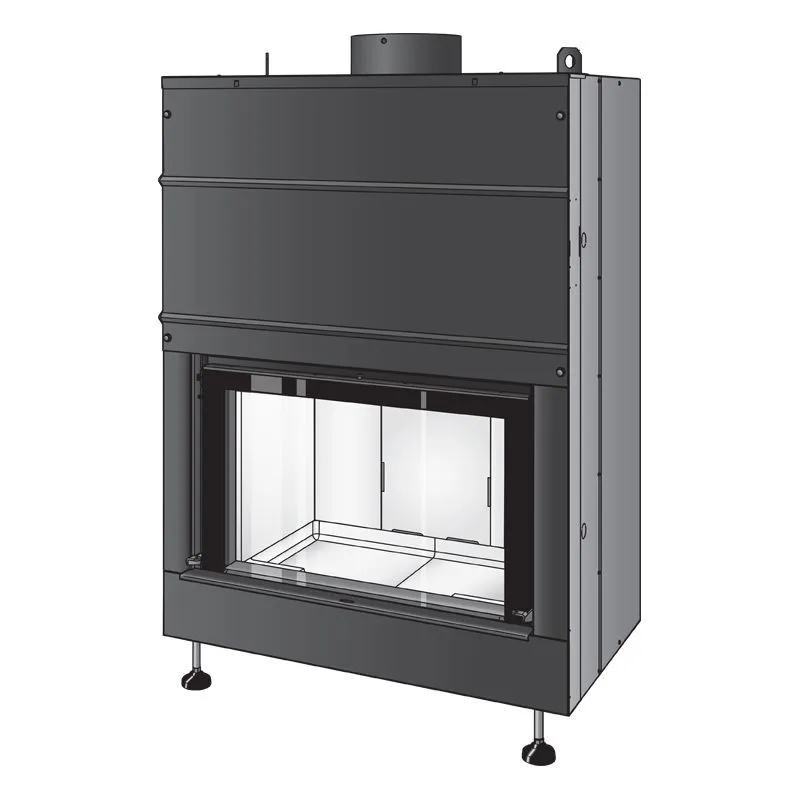

LIGHT-80 wood-burning fireplace
dim. 94x59x136H
Wood-burning fireplace to heat the water, with a modern connotation. It is distinguished by the rectangular shape of the door, entirely in ceramic glass; hinged and flap opening for cleaning. Combustion chamber lined with CMtech®, refractory made with significant thicknesses. The two accessories for the open expansion vessel and for the closed expansion vessel are optional.
The monobloc includes the following equipment:
1 safety heat exchanger
1 adjustment handle with 5mm hexagonal section
1 ash scoop
The control, protection, safety and expansion devices, however necessary, are not supplied, to be implemented on the system by the installer
| LIGHT 80-21S | LIGHT 80-27S | |||||
| Classe di qualità (D.M. 186 - 7/11/2017) |  |
|
||||
| potenza | 24,3 | 29,4 | ||||
| potenza certificata | 21,0 | 25,00 | kW | |||
| potenza resa all'ambiente | 12,2 | 15,4 | kW | |||
| potenza resa all'acqua | 8,8 | 10,0 | kW | |||
| CO misurato (al 13% di ossigeno) | ≤ 0,0447 | ≤ 0,0447 | % | |||
| rendimento | 86,4 | 86,4 | % | |||
| pressione max di esercizio | 1,5 | 1,5 | bar | |||
| consumo combustibile | 6,25 | 8,0 | kg/h | |||
| portata in massa dei fumi | 16,9 | 17,3 | g/s | |||
| temperatura dei fumi | 213 | 230 | °C | |||
| tiraggio (depressione al camino) | 12 | 12 | Pa | |||
| tubo uscita fumi | Ø 250 | Ø 250 | mm | |||
| sez. interna canna fumaria | Ø 25 / 25x25 | Ø 25 / 25x25 | cm | |||
| altezza min. canna fumaria | 5 | 5 | m | |||
| condotti entrata aria | Ø 12 / 10x10 | Ø 12 / 10x10 | cm | |||
| superficie riscaldabile a potenza certificata | 241 | 313 | *mq | |||
| peso netto | 308 | 308 | kg | |||
Classe Energetica: A+
Livello di prestazione ambientale ««««
Data sheet
Specific References
Reference: 6006011400
Brand: Caminetti Montegrappa
