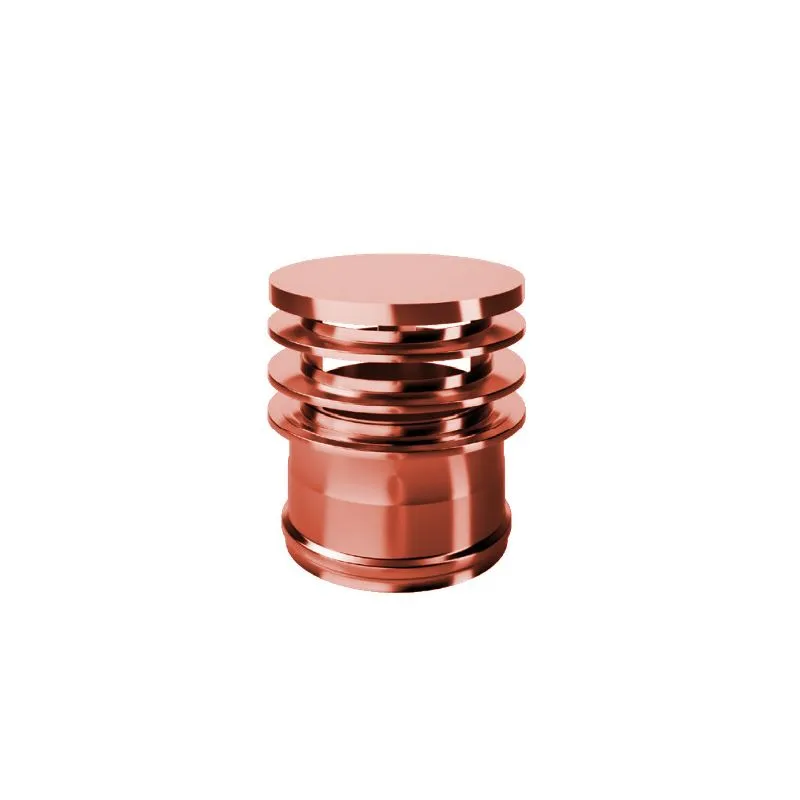

HAT WITH RINGS
COPPER CHIMNEY - DOUBLE WALL
ISOAIR SYSTEM COPPER
IsoAIR RAME is the air-insulated double-walled flue system with an internal wall in AISI 316 stainless steel and an external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency, durability and aesthetic performance
The absence of insulation reduces the overall dimensions to just 2 cm more than the nominal diameter of the internal smoke duct
Mechanical joint with locking collar and sealing gasket, practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa and operating temperatures of up to 200°C (traditional or condensing gas boilers, pellet stoves and boilers, kitchen and extractor hoods, etc.).
The entire ISOAIR RAME line is certified according to European legislation EN-1856-1:2009 and is guaranteed for 10 years
The cap with rings is the terminal of the flue with a more pleasant aesthetic and functionality comparable to the much more voluminous non-return cap
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket)
Pressure class: P1 (with gasket)
Condensation resistance: W
Corrosion resistance class : V2 (solid and liquid fuels)
Material type : L50040/50 Internal wall in Aisi 316 STAINLESS steel - External wall in NATURAL COPPER

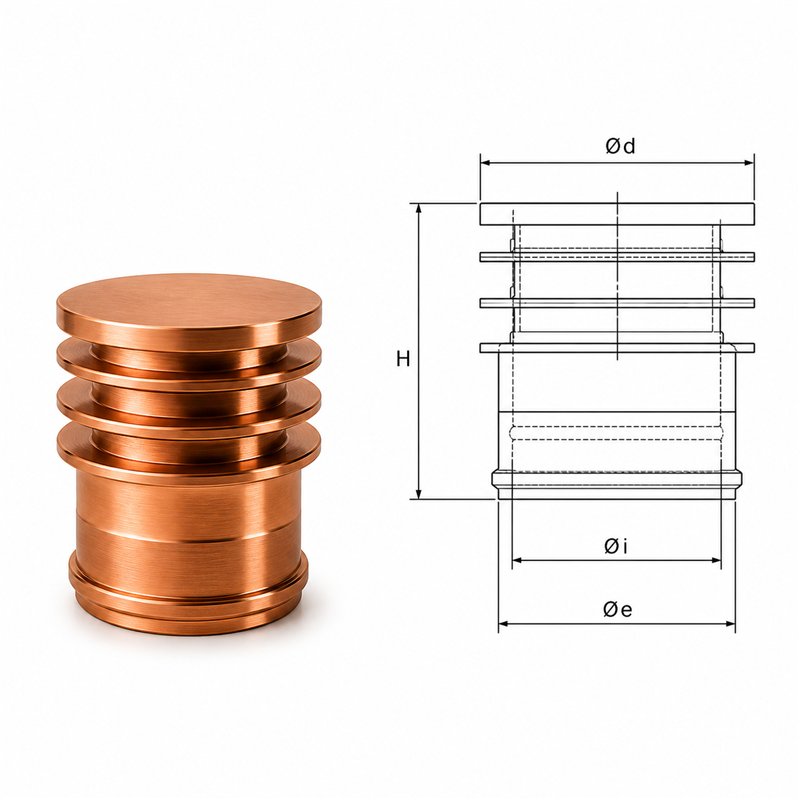

Cod. | Øi | Øe | Ød | H | N° ANELLI | |
---|---|---|---|---|---|---|
Rame naturale | RIATLN80 | 80 | 100 | 130 | 185 | 3 |
Rame naturale | RIATLN100 | 100 | 120 | 150 | 215 | 4 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
