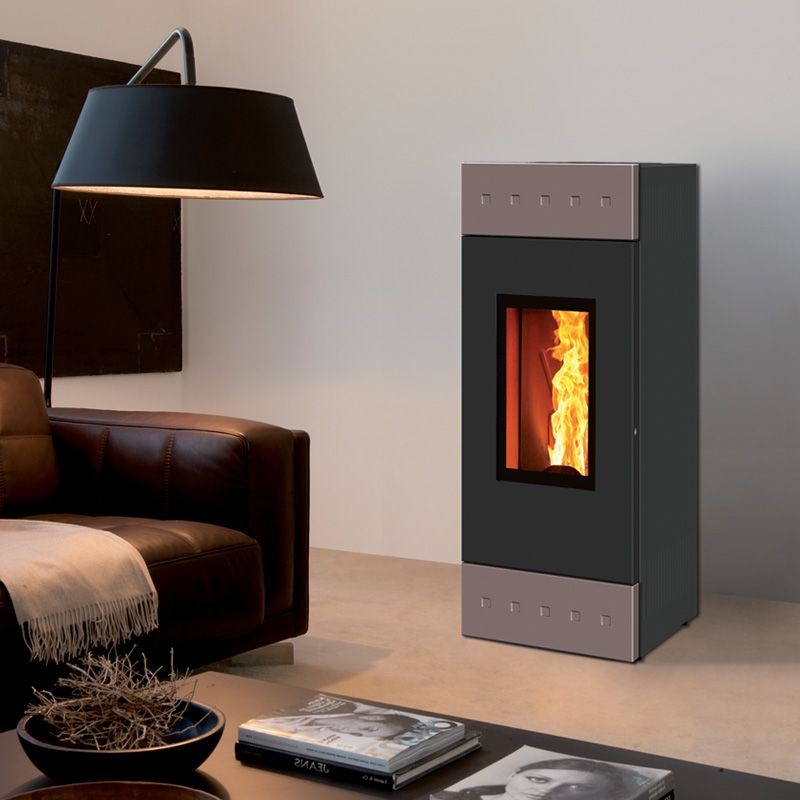

Pellet stove hermetic ventilated and ducted air TILE NXS EVO 5 stars
W 42 x D 50 x H 111cm
Square shape and rigorous design, the front and plinth are decorated with a geometric pattern.
The Tile Evo cladding is in majolica, the structure in painted steel.
Tile Evo is available in three colours: matt white, dove grey, glossy bordeaux.
Control panel equipped with backlit graphic display with TOUCH SCREEN digital icons
SMART ventilation: advanced software for intelligent management of the ambient air fan which allows the stove to operate in silent mode ensuring excellent comfort
Intuitive software with setting of both ambient temperature and maximum operating power. Equipped with STAND-BY function to maintain the desired comfort of the internal environment
Chronothermostat with settable temperature and with the possibility of choosing the operating power for each programmed time band
Continuous rotation gear motor
Electronic card with the possibility of managing external thermostats
Cylindrical cast iron burner equipped with flame arrester deflector
Ignition tube inserted inside the burner, always guarantees perfect ignition of the product
TUTOR efficient combustion control system
Modern removable hearth sides in cast iron
Double ducting, served by 2 independent centrifugal fans
Double flue lateral to the combustion chamber
Advanced lateral heat exchanger, in steel, composed of tubular ducts and fins communicating between the sides of the combustion chamber and the external walls, for heating the ducted air
Heat exchanger, rear and above the combustion chamber, in steel, for heating the ambient air
Probe to detect the ambient temperature
Safety thermostat
Safety pressure gauge
Tangential ambient air fan
Removable ash drawer
Non-slip adjustable feet for correct levelling
Wi-Fi module (optional)
| Classe di qualità (D.M. 186 - 7/11/2017) |
 |
|
| potenza termica globale (al focolare) |
10,1 |
kW |
| potenza certificata |
4,0 - 9,0 |
kW |
| potenza resa alla canalizzazione |
2,5 + 2,5 (55%) |
kW |
| CO misurato (al 13% di ossigeno) |
0,02 |
% |
| rendimento |
89 |
% |
| consumo combustibile |
0,91 - 2,1 |
kg/h |
| portata in massa dei fumi |
3,2 - 6,8 |
g/s |
| temperatura dei fumi |
169 |
°C |
| tiraggio (depressione al camino) |
7 |
Pa |
| capacità serbatoio |
17 |
Kg |
| autonomia |
19 - 8 |
h |
| tubo uscita fumi |
Ø 80 |
mm |
| ingresso aria per la combustione |
Ø 60 |
mm |
| superficie riscaldabile a potenza certificata |
103 |
*mq |
| peso netto |
80 |
kg |
| peso con imballo |
91 |
kg |
