Safe to wall cert. UNI-EN 14450 S1

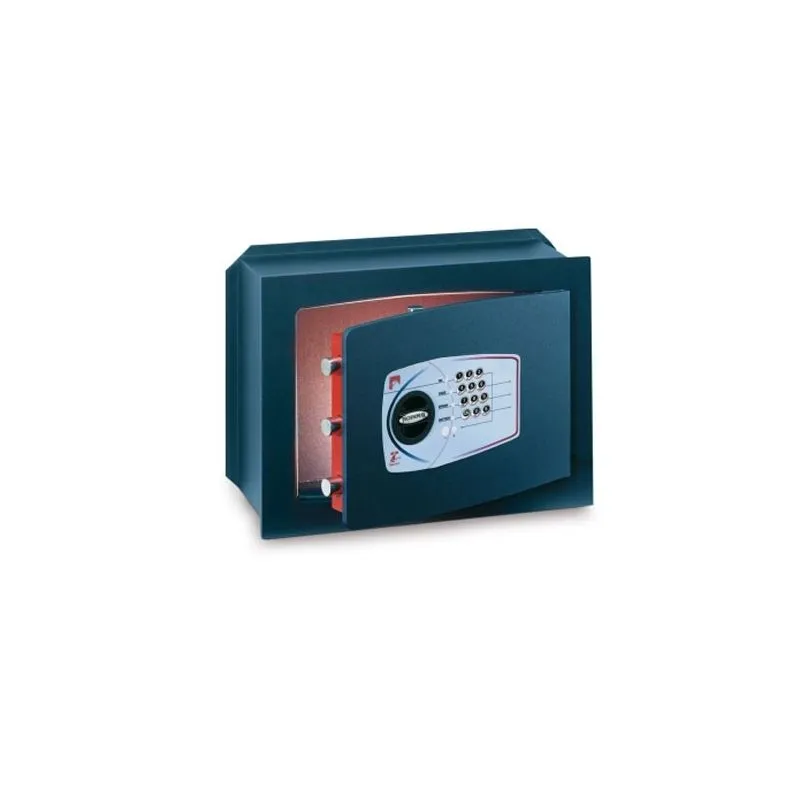

GOLD TRONY series - ELECTRONIC CLOSING
TECHNOMAX
The safes of the "GOLD" line are the result of a high-tech processing process, which combines the robustness of the structure with a refined and attractive design, making it an exclusive product. The cutting of the front and the door made with a laser system, the welding completely performed by robotic systems, the particularly robust internal profiles, the highly reliable closing systems, the finishes with attention to detail and the Quality Control operated according to strict standards guarantee a final product of great strength, functionality and modern and captivating line. The safes of the "GOLD" series offer a wide range of models able to satisfy all the needs of a careful, informed and demanding user.
Technical features
- UNI EN 1300 certified lock controlled by an electronic device with high reliability, with permanent memory.
- Opening / closing with control knob and block with electromagnet.
- Internal power supply with alkaline batteries (not included).
- Membrane keyboard with 4 dedicated leds.
- External battery contacts obtained directly on the keyboard.
- Sound and visual signals for typing confirmation, errors and internal batteries in the phase of exhaustion.
- Nickel-plated steel bolts, anti-cut rotors, 22 mm in diameter.
- Protection to the lock mechanism with manganese steel plate.
- Special jokes of the door to resist the attempts to break in with a stick.
- Robust internal welds made with a robotic system.
- Perimeter welding of the front to the body made in continuous with robotized system.
- Anchor lugs on the 4 sides of the bottom with anti-tear function.
- Special painting of quality with epoxy powders.
- 100% MADE IN ITALY product
| Misure esterne mm. | Misure interne mm. | Dimensioni porta mm | Numero catenacci | Peso | Vol. |
---|
Art. | Alt. | Larg. | Prof. | Alt. | Larg. | Prof. | Alt. | Larg. | Oriz. | Vert | Kg | Lt |
GT/1 | 210 | 270 | 150 | 185 | 245 | 100 | 130 | 180 | 2 | - | 9.5 | 5 |
GT/2 | 210 | 270 | 200 | 185 | 245 | 150 | 130 | 180 | 2 | - | 10.5 | 7 |
GT/3B | 210 | 340 | 150 | 185 | 315 | 100 | 140 | 250 | 2 | - | 12.5 | 6.5 |
GT/3 | 210 | 340 | 200 | 185 | 315 | 150 | 140 | 250 | 2 | - | 13 | 9 |
GT/4 | 270 | 390 | 200 | 245 | 365 | 150 | 195 | 300 | 2 | 1+1 | 18 | 14 |
GT/4L | 270 | 390 | 240 | 245 | 365 | 190 | 195 | 300 | 2 | 1+1 | 19 | 18 |
GT/5 | 340 | 460 | 200 | 315 | 435 | 150 | 265 | 370 | 3 | 1+1 | 25 | 21 |
GT/5L | 340 | 460 | 240 | 315 | 435 | 190 | 265 | 370 | 3 | 1+1 | 26 | 27 |
GT/6 | 420 | 480 | 230 | 395 | 455 | 180 | 345 | 390 | 3 | 2+2 | 33.5 | 33 |
GT/6L | 420 | 480 | 280 | 395 | 455 | 230 | 345 | 390 | 3 | 2+2 | 34.5 | 43 |
GT/7 | 480 | 420 | 280 | 455 | 395 | 230 | 405 | 330 | 3 | 2+2 | 34.5 | 43 |
GT/7L | 480 | 420 | 360 | 455 | 395 | 310 | 405 | 330 | 3 | 2+2 | 37 | 57 |
