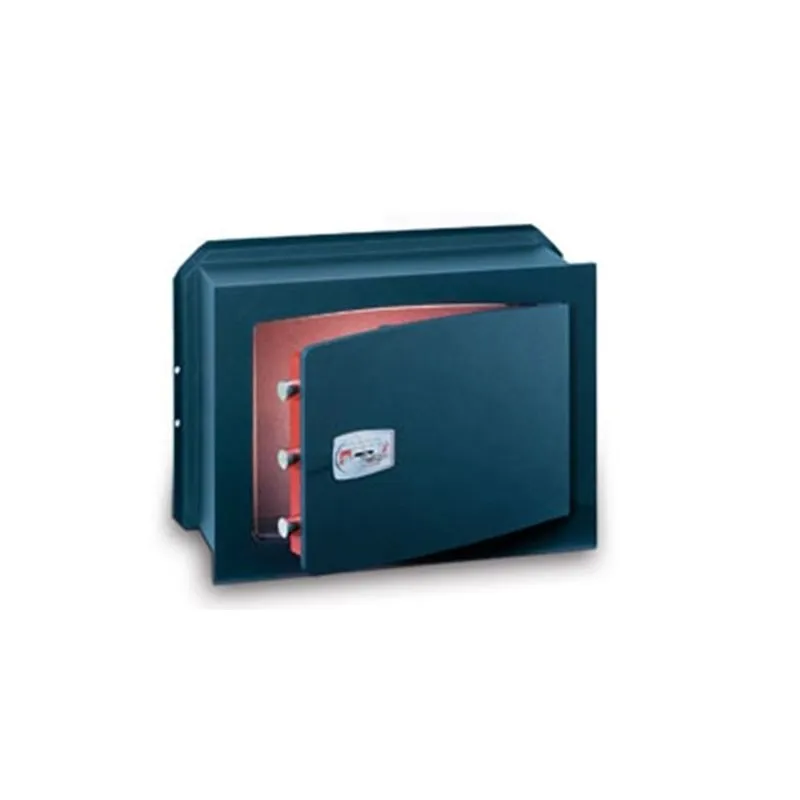

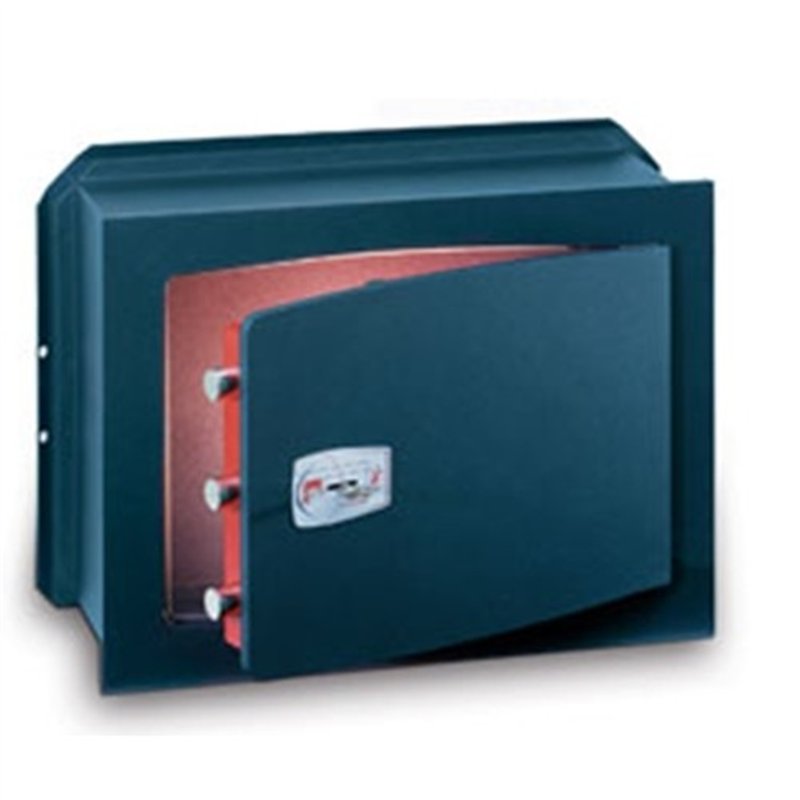

Safe to wall cert. UNI-EN 14450 S2
GOLD KEY series - KEY LOCKING
TECHNOMAX
The safes of the "GOLD" line are the result of a high-tech processing process, which combines the robustness of the structure with a refined and attractive design, making it an exclusive product. The cutting of the front and the door made with a laser system, the welding completely performed by robotic systems, the particularly robust internal profiles, the highly reliable closing systems, the finishes with attention to detail and the Quality Control operated according to strict standards guarantee a final product of great strength, functionality and modern and captivating line. The safes of the "GOLD" series offer a wide range of models able to satisfy all the needs of a careful, informed and demanding user.
Technical features
- Safety lock tested EN 1300 with 8 asymmetric and independent levers with double-bit key.
- EVO-LOCK system - The key is only duplicated upon presentation of the ownership card
- Extraction of the key impossible to open lock.
- Nickel-plated steel bolts, anti-cut rotors, 22 mm in diameter.
- Protection to the lock mechanism with manganese steel plate.
- Special jokes of the door to resist the attempts to break in with a stick.
- Robust internal welds made with a robotic system.
- Perimeter welding of the front to the body made in continuous with robotized system.
- Anchor lugs on the 4 sides of the bottom with anti-tear function.
- Special painting of quality with epoxy powders.
| Misure esterne mm. | Misure interne mm. | Dimensioni porta mm | Numero catenacci | Peso | Vol. |
---|
Art. | Alt. | Larg. | Prof. | Alt. | Larg. | Prof. | Alt. | Larg. | Oriz. | Vert | Kg | Lt |
GK/1 | 210 | 270 | 150 | 185 | 245 | 100 | 130 | 180 | 2 | - | 9.5 | 5 |
GK/2 | 210 | 270 | 200 | 185 | 245 | 150 | 130 | 180 | 2 | - | 10.5 | 7 |
GK/3B | 210 | 340 | 150 | 185 | 315 | 100 | 140 | 250 | 2 | - | 12.5 | 6.5 |
GK/3 | 210 | 340 | 200 | 185 | 315 | 150 | 140 | 250 | 2 | - | 13 | 9 |
GK/4 | 270 | 390 | 200 | 245 | 365 | 150 | 195 | 300 | 2 | 1+1 | 18 | 14 |
GK/4L | 270 | 390 | 240 | 245 | 365 | 190 | 195 | 300 | 2 | 1+1 | 19 | 18 |
GK/5 | 340 | 460 | 200 | 315 | 435 | 150 | 265 | 370 | 3 | 1+1 | 25 | 21 |
GK/5L | 340 | 460 | 240 | 315 | 435 | 190 | 265 | 370 | 3 | 1+1 | 26 | 27 |
GK/6 | 420 | 480 | 230 | 395 | 455 | 180 | 345 | 390 | 3 | 2+2 | 33.5 | 33 |
GK/6L | 420 | 480 | 280 | 395 | 455 | 230 | 345 | 390 | 3 | 2+2 | 34.5 | 43 |
GK/7 | 480 | 420 | 280 | 455 | 395 | 230 | 405 | 330 | 3 | 2+2 | 34.5 | 43 |
GK/7L | 480 | 420 | 360 | 455 | 395 | 310 | 405 | 330 | 3 | 2+2 | 37 | 57 |
