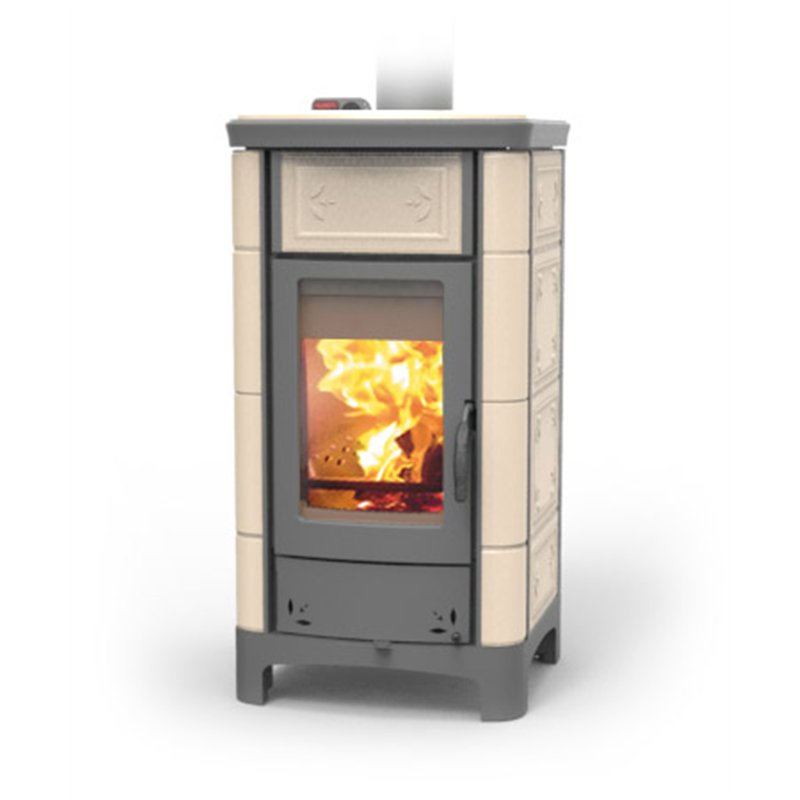

ARDHEA EVO 5 Maiolica wood-burning thermo stove

The ARDHEA Evo5 wood-burning thermostove by Thermorossi is an ecological product made of steel, compliant with recent European design and safety regulations.

Power at the Hearth:
According to EN13240 (*): 30.7 kW.
According to EN13240 (*****):16.4 kW.
Fireplace power: 23 kW, of which 19.3 kW delivered to the water and 16.4 kW to the environment.
Nominal power: 15.1 kW, of which 11 kW delivered to water and 4.1 kW to the environment.
Innovative Design:
The thermo stove has a large cast iron hearth door with a wide view of the flame.
The primary air can be regulated manually or automatically via an automatic regulation valve.
The secondary air is independent from the primary and managed separately to optimize wood consumption and maintain high efficiency.
Inside the combustion chamber, Ardhea is equipped with a special Thermax tile that distributes the heat over the entire exchange surface.
Long forced passages for the fumes and a special high efficiency exchanger contribute to maximum yield.
The cast iron upper cover ensures better heat transfer into the environment.
5 star environmental certification: This product complies with the 5 Star Class according to the emissions and performance requirements of the Decree of 7 November 2017, n. 186.

Dimensions and Accessories:

Fire mouth size: 325x310 mm (HxL).
Firebox size: 430x420x430mm (HxWxD)
Anti-scald handle in isoplast PA66.
Adjustable feet, removable ash tray.
Boiler thermometer, circulator activation light, anti-condensation thermostat.
Rear hydraulic connections 1" 1/4 female.
Poker, scraper, glove.
Upper smoke outlet: 150 mm.
Simplified cleaning and extraordinary maintenance operations.

The ARDHEA Evo5 wood-burning thermo stove offers ecological performance, innovative design and advanced features for sustainable heating of your home.

DIMENSIONI (HXLXP)	1171X592X642
PESO (KG)	280
AREA RISCALDABILE (M²)	227
RENDIMENTO MAX	92,2 %
POTENZA AL FOCOLARE (KW)	* 30,7 / ***** 16,4
POTENZA NOMINALE (KW)	* 23,0 / ***** 15,1
POTENZA ALL'ACQUA (KW)	* 19.3 / ***** 11,0
IRRAGGIAMENTO (KW)	* 3,7 / ***** 4,1
CONSUMO ORARIO LEGNA (KG/H)	* 7,1 / ***** 3,8
ARIA PRIMARIA DA ESTERNO	SI
CIRCOLATORE IMPIANTO	-
VASO D'ESPANSIONE	-
VALVOLA DI SOVRA PRESSIONE	-
ASSORBIMENTO ELETTRICO	-
EMISSIONI CO (MG/M³; 13% DI O2)	79
EMISSIONI POLVERI (MG/M³; 13% DI O2)	22
DIAMETRO USCITA FUMI (MM)	150
TIRAGGIO MINIMO RICHIESTO (PA)	-10
TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA)	-5



Potenze e consumi secondo EN 13240 * (una stella) / ***** (5 stelle)



Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
