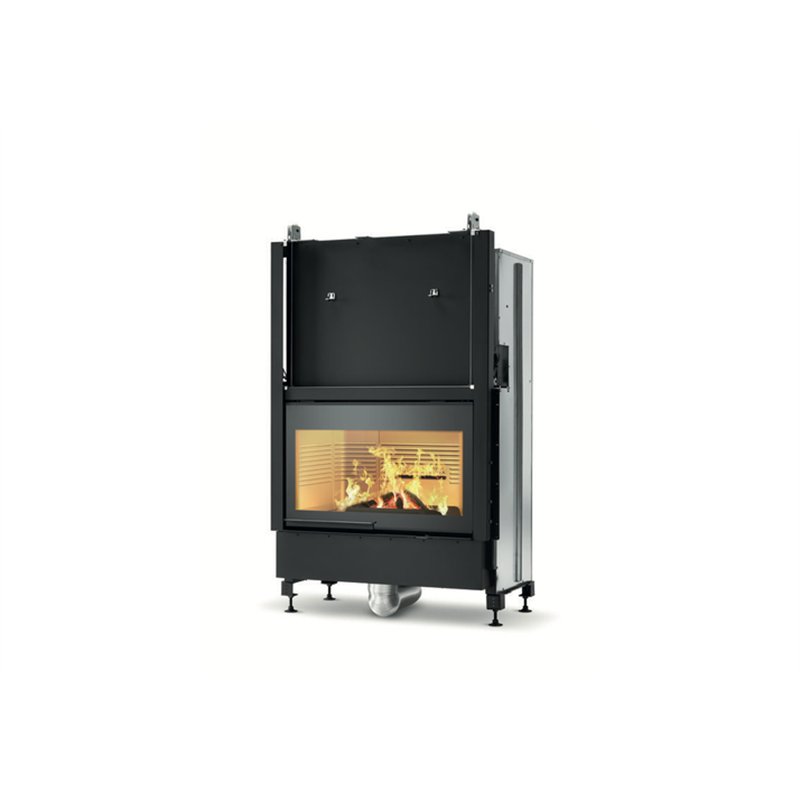

Wood-burning fireplace Ecomonobloc WT 16:9 Air front
16 x 63 x 172cm - 450kg

Wood-burning fireplace with sliding door and hearth in Thermofix. Characterized by high performance and very low emissions.

• hearth in Thermofix®
• solid door sliding system which makes door opening easier and smoother
• tilting glass cleaning opening (40°)
• heating by natural convection and radiation
• Double Combustion system
• removable ash pan
• smoke by-pass valve when the door is opened
• management and control of combustion in a precise way through the regulation of the primary/secondary air
• possibility of taking the combustion air directly from outside
• integrated O2Ring technology, for reducing emissions
• aesthetic wood holder in cast iron as standard

N: natural version
V: ventilated version (ET4W technology), with ventilation casing, radial fan with control unit and 4 adjustable outlets with flexible hoses
V EPLUS: ventilated version, with ventilation casing, radial fan with control unit and 4 adjustable outlets with flexible pipes, with ET4W technology for combustion control, ventilation and motorized door opening

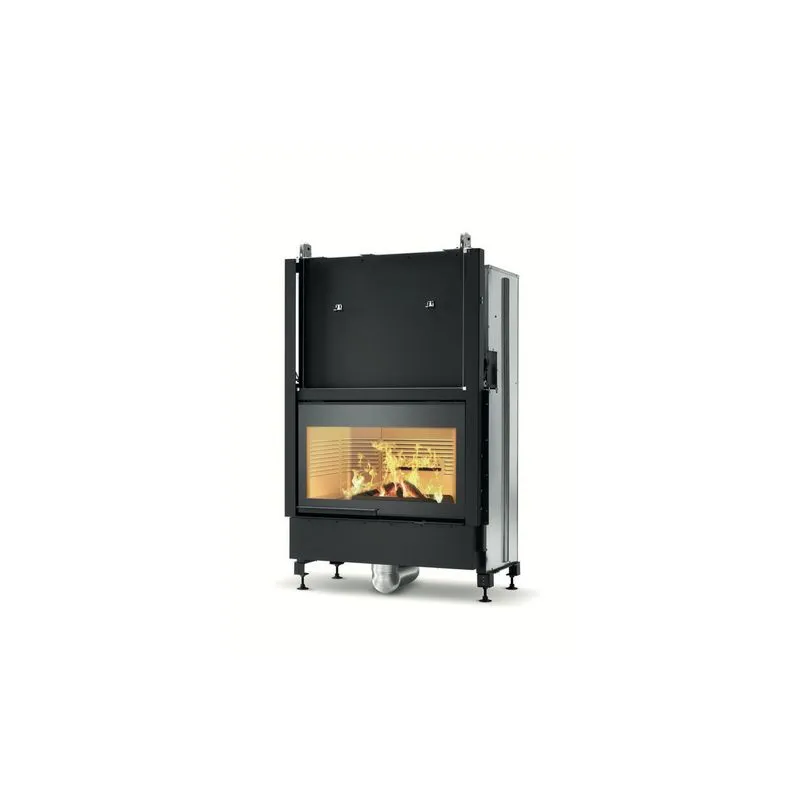

THE IMAGE IS RELATED TO VERSION V

	RADIATION AND NATURAL CONVECTION Homogeneously distributed heat thanks to the mix of two heating principles: radiation and natural convection.
	DOUBLE COMBUSTION During combustion, preheated oxygen is introduced into the firebox which, causing a second flame, burns the CO2 that has remained unburned, simultaneously releasing further heat and CO2: CO + 1/2 O2 = CO2 + HEAT The benefits are considerable: an optimal thermal yield, with an increase in savings in consumption and cleaner fumes, for less pollution of the atmosphere.
	COMBUSTION DYNAMIC CONTROL A series of sensors allows for the precise and timely detection of all possible variables which are analyzed and checked in real time to activate the corrective actions necessary for the perfect functioning of the stove. The software can therefore intervene immediately on fuel and combustion air control to always maintain the right balance between the parameters. This guarantees maximum efficiency in the most diverse operating conditions, result: the stove always works perfectly and warns of the slightest sign of malfunction that could compromise efficiency.
	O2RING Device composed of active elements which, in contact with the combustion fumes, trigger a controlled chemical reaction which neutralizes the dust and CO on average up to 80%
	FIREBOX IN THERMOFIX® Precious material, based on refractory clays and molten cements, ensures superior performance, comfort, savings and design.

 Classe Energetica: A
 Certificazione EcoDesign 2022
 Livello di prestazione ambientale ««««

FOR DELIVERY TIMES, ALWAYS CONSULT OUR CUSTOMER SERVICE BEFORE PLACING THE ORDER
