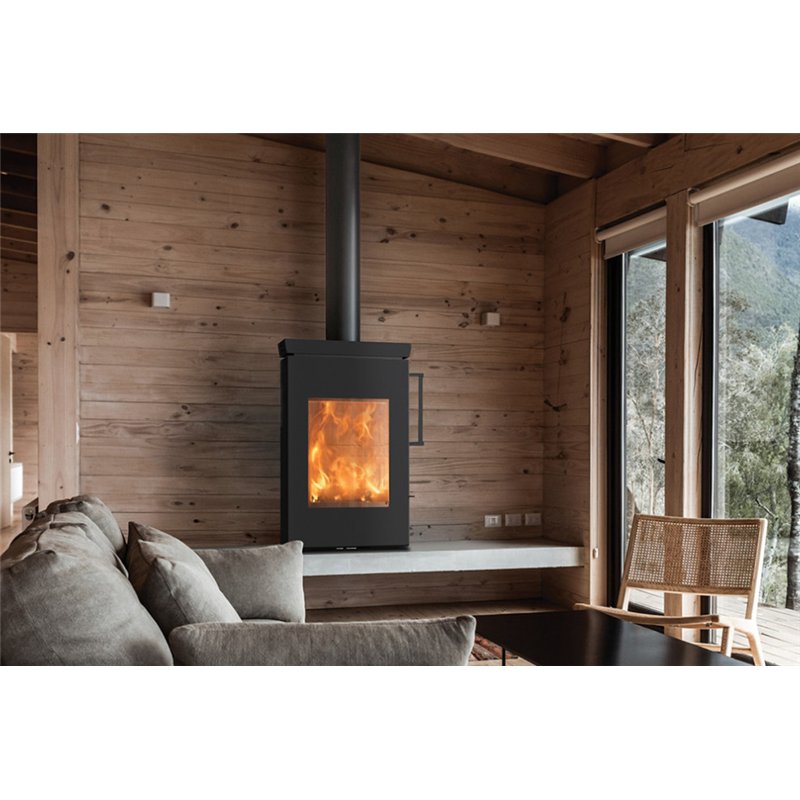

Thermorossi ZEN Wood Stove
Thermorossi ZEN Wood Stove: Efficiency and Space-Saving Design
The Thermorossi ZEN wood stove is a space-saving, hung solution with low emissions and a performance of over 85%.
Thanks to the Smoke by-pass technology, the smoke released into the environment is reduced with each load of wood, maintaining constant performance and simplifying extraordinary cleaning operations.
Made with a robotic production process, the ZEN stove is built with certified materials and high thicknesses of steel and cast iron, respecting the strictest European regulations. Equipped with a stainless steel heat exchanger and a generously sized cast iron combustion chamber (HxWxD cm: 44x36x23), it offers secondary and tertiary air, ideal for low-energy homes.
The ZEN stove draws combustion air entirely from the outside, ensuring safety with an anti-scald handle, a steel door with automatic snap closure and a ceramic glass resistant to 750°C. Includes a removable ash drawer, a wall mounting bracket and adjustable feet. The external cladding is in matt black painted steel, for an elegant and modern design
| DIMENSIONI (HXLXP) | 849X613X408 |
| PESO (KG) | 132 |
| AREA RISCALDABILE (M²) | 43 - 53 - 69 |
| POTENZA AL FOCOLARE (KW) | 5,5 - 6,8 - 9,0 |
| POTENZA NOMINALE (KW) | 4,8 - 5,9 - 7,7 |
| IRRAGGIAMENTO (KW) | 4,8 - 5,9 - 7,7 |
| CONSUMO ORARIO LEGNA (KG/H) | 1,3 - 1,6 - 2,0 |
| EMISSIONI CO (MG/M³; 13% DI O2) | 362 - 331 - 283 |
| EMISSIONI POLVERI (MG/M³; 13% DI O2) | 16 - 15 - 13 |
| DIAMETRO USCITA FUMI (MM) | 130 |
| TIRAGGIO MINIMO RICHIESTO (PA) | -12 |
| TIRAGGIO MINIMO PER CALCOLI DIMENSIONAMENTO CANNA FUMARIA (PA) | -5 |
Classe Energetica: A+
Certificazione EcoDesign 2022
Livello di prestazione ambientale
