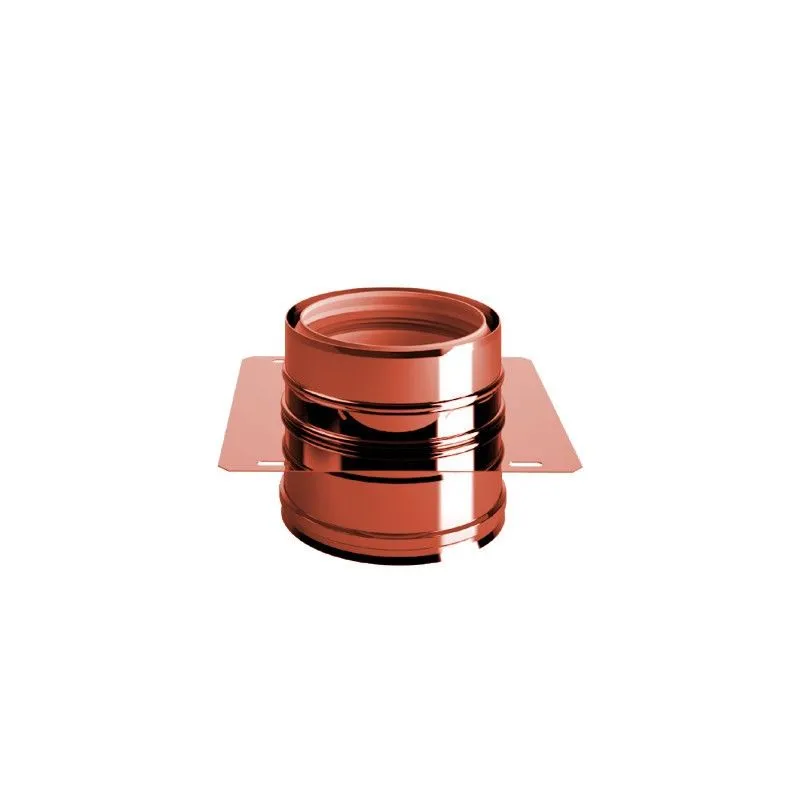

SUPPORT PLATE WITH STRAIGHT ELEMENT
COPPER EXTERNAL PPL CHIMNEY
CONDEX COPPER SYSTEM

Condex COPPER is the polypropylene flue system with external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency, durability and aesthetic appeal.
Designed and built to meet the specifications of modern condensing generators that require polypropylene discharge with maximum operating pressure of 200Pa and operating temperatures up to 120 ° C.
The use of natural copper gives the flue system a considerable aesthetic value far superior to similar systems painted with brown tones or galvanized as the natural oxidation of copper is the same as that of rain pipes.

The whole CONDEX line is certified according to the European standard EN-14471-2005

The plate with straight element, resting on a structure or on the wall by means of support flaps art. DEM.CUCP allows you to divide the weight loads into several points

Designation: Ducted flue system with gasket - EN 14471: 2005

Temperature class: T120 (with gasket)
Pressure class: P1 (with gasket)
Condensation resistance: W.
Corrosion resistance class: 1
Material type: Polypropylene inside / natural copper outside

Delivery terms: 1 week

Certification CE

Warranty: 2 Years
