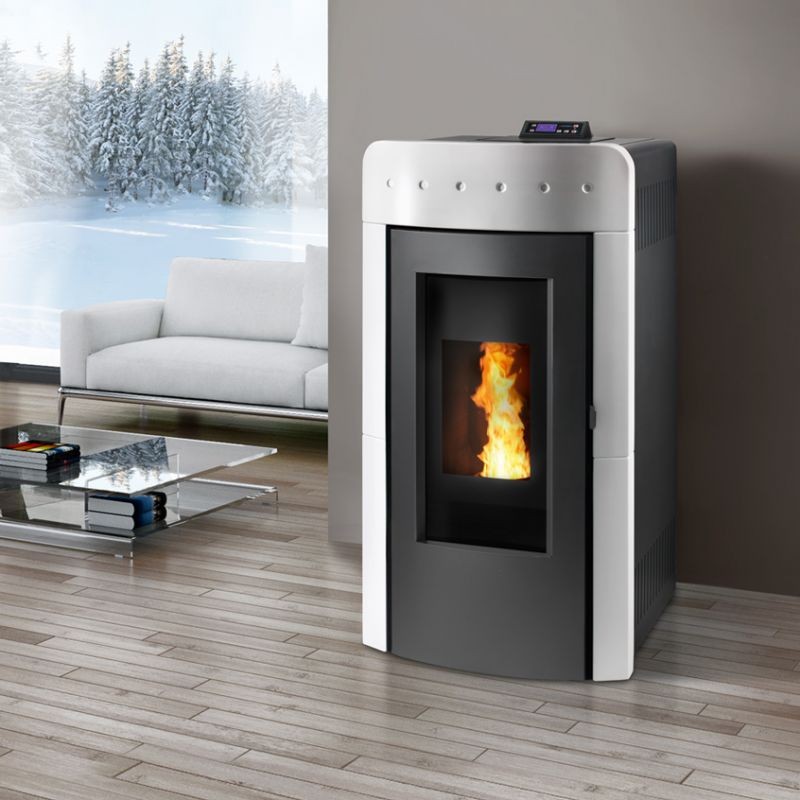

IDRO ATOLLO AQ-S pellet stove
L 68 x P 71 x H 128 cm

The large majolica frame emphasizes the door and the silk-screened glass, which allows a broad view of the fire. The front is decorated with an elegant geometric pattern. The angled display allows for easier reading of the data. The covering and the structure of Atollo are in painted steel. Atollo is available in three colors: glossy white, cream, glossy burgundy.

Customization and adaptability to any type of environment
Possibility for the user to adjust the pellet combustion calibration
Predisposition for the channeling of combustion air
Silence and maximum comfort
Reduction of pellet consumption for greater savings
Reduction of polluting emissions
Maximum adaptability to any type of pellet, to the flue and to different types of installation
Minimal and easy maintenance: cleaning the stove is quick and easy
High water performance
Installation flexibility thanks to the different types of systems that can be set
Possibility to set the operating and starting water temperature of the circulator
Possibility to connect the thermostats and the room temperature probe
Possibility of connecting the temperature probe and setting the puffer temperature
Possibility of connecting the temperature probe and setting the boiler temperature
Optimal management of the three-way valve for the production of domestic hot water
Possibility to install the domestic hot water production kit
Possibility of combining with another generator
Possibility to install the primary and secondary circuit separation kit

	AQ21S		AQ27S	AQ32S
Classe di qualità (D.M. 186 - 7/11/2017)
potenza termica globale (al focolare)	21,7		28,5	34,5	kW
potenza certificata	5,6 - 20,5		5,6 - 26,5	5,6 - 31,5	kW
potenza resa all'ambiente	1,0 - 1,5		1,0 - 1,5	1,0 - 1,5	kW
potenza resa all'acqua	4,6 - 19,0		4,6 - 25,0	4,6 - 30,0	kW
CO misurato (al 13% di ossigeno)	0,003		0,003	0,005	%
rendimento	94,5		93,0	91,5	%
consumo combustibile	1,3 - 4,7		1,3 - 6,1	1,3 - 7,4	kg/h
portata in massa dei fumi	8,9 - 12,7		8,9 - 16,6	8,9 - 19,7	g/s
temperatura dei fumi	66 - 106		66 - 132	66 - 153	°C
tiraggio (depressione al camino)	11		11	12	Pa
capacità serbatoio	55		55	55	Kg
autonomia	42-11		42 - 8,5	42 - 7	h
tubo uscita fumi	Ø 100		Ø 100	Ø 100	mm
ingresso aria per la combustione	Ø 80		Ø 80	Ø 80	mm
superficie riscaldabile a potenza certificata	235		304	362	*mq
peso netto	210		210	210	kg
