Description
INCREASE
STAINLESS STEEL CHIMNEY - DOUBLE WALL
ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

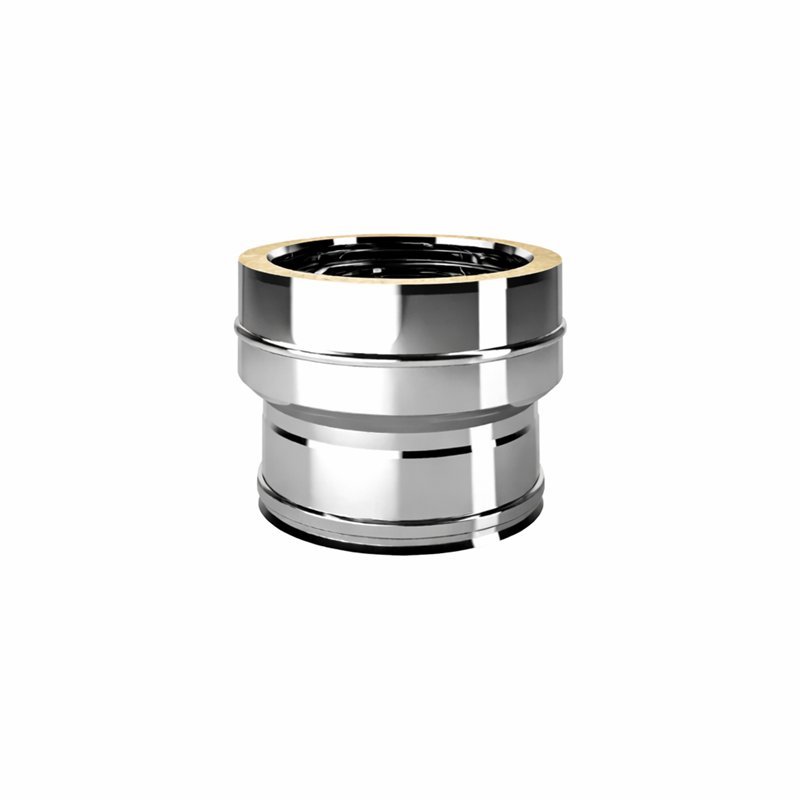

The increase is a fitting that allows the passage to the larger measurement diameter

The male part has the smallest diameter and the female part has the largest diameter


Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)

Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

  Cod. Øi1 Øe1 Øi2 Øe2 Hu I
Acciaio Inox I2RCDAØi1-100 XXX XXX + 50 100 150 160 45
Acciaio Inox I2RCDAØi1-130 XXX XXX + 50 130 180 160 45
Acciaio Inox I2RCDAØi1-150 XXX XXX + 50 150 200 160 45
Acciaio Inox I2RCDAØi1-180 XXX XXX + 50 180 230 160 45
Acciaio Inox I2RCDAØi1-200 XXX XXX + 50 200 250 160 45
Acciaio Inox I2RCDAØi1-250 XXX XXX + 50 250 300 160 45
Acciaio Inox I2RCDAØi1-300 XXX XXX + 50 300 350 160 45
Acciaio Inox I2RCDAØi1-350 XXX XXX + 50 350 400 160 45
Acciaio Inox I2RCDAØi1-400 XXX XXX + 50 400 450 160 45
Acciaio Inox I2RCDAØi1-450 XXX XXX + 50 450 500 160 45
Acciaio Inox I2RCDAØi1-500 XXX XXX + 50 500 550 160 45


IMPORTANTE ::. Come ordinare :

- scegliere nelle opzioni IL DIAMETRO MAGGIORE (FEMMINA)

- specificare nelle opzioni IL DIAMETRO MINORE (MASCHIO)

Termini consegna materiale : 1 settimana


Certificazione : KIWA

Garanzia: 10 Anni


NON VENDIBILE CON PAGAMENTO CONTRASSEGNO

ARTICOLO SPECIALE REALIZZATO SU MISURA - NON RESTITUIBILE
