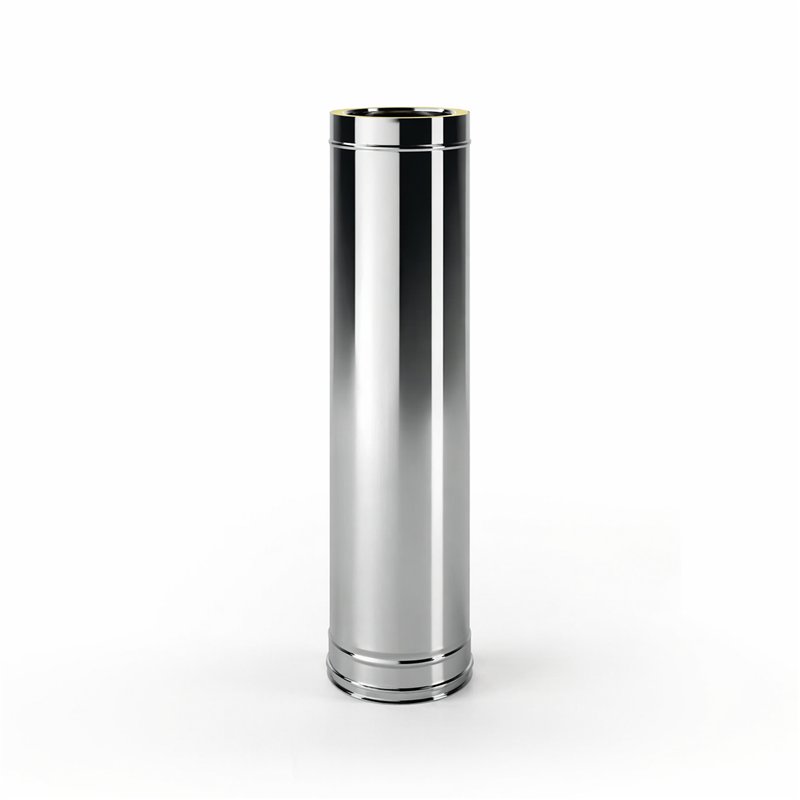

Pipe L 0.50 m double wall flue ISO25 De Marinis Inox
  • Pipe L 0.50 m double wall flue ISO25 De Marinis Inox
  • Pipe L 0.50 m double wall flue ISO25 De Marinis Inox

Pipe L 0.50 m double wall flue ISO25 De Marinis Inox

I2T580
De Marinis

Pipe L 0.50 m double wall flue ISO25 De Marinis Inox

Diametro
€51.40
€41.12Save 20%
Quantity

help_outlineAsk about product
Pipe L 0.50 m double wall flue ISO25 De Marinis Inox

Pipe L 0.50 m double wall flue ISO25 De Marinis Inox

Pipe L 0.50 m double wall flue ISO25 De Marinis Inox

I accept privacy policy rules

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
LINEAR ELEMENT LENGTH CM.50
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 500 mm straight element is used to create horizontal or vertical sections

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel


  Cod. Øi Øe Hu I
Acciaio Inox I2T580 80 130 445 45
Acciaio Inox I2T5100 100 150 445 45
Acciaio Inox I2T5130 130 180 445 45
Acciaio Inox I2T5150 150 200 445 45
Acciaio Inox I2T5180 180 230 445 45
Acciaio Inox I2T5200 200 250 445 45
Acciaio Inox I2T5250 250 300 445 45
Acciaio Inox I2T5300 300 350 445 45
Acciaio Inox I2T5350 350 400 445 45
Acciaio Inox I2T5400 400 450 445 45
Acciaio Inox I2T5450 450 500 445 45
Acciaio Inox I2T5500 500 550 445 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
I2T580

Specific References

MPN
I2T5
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
