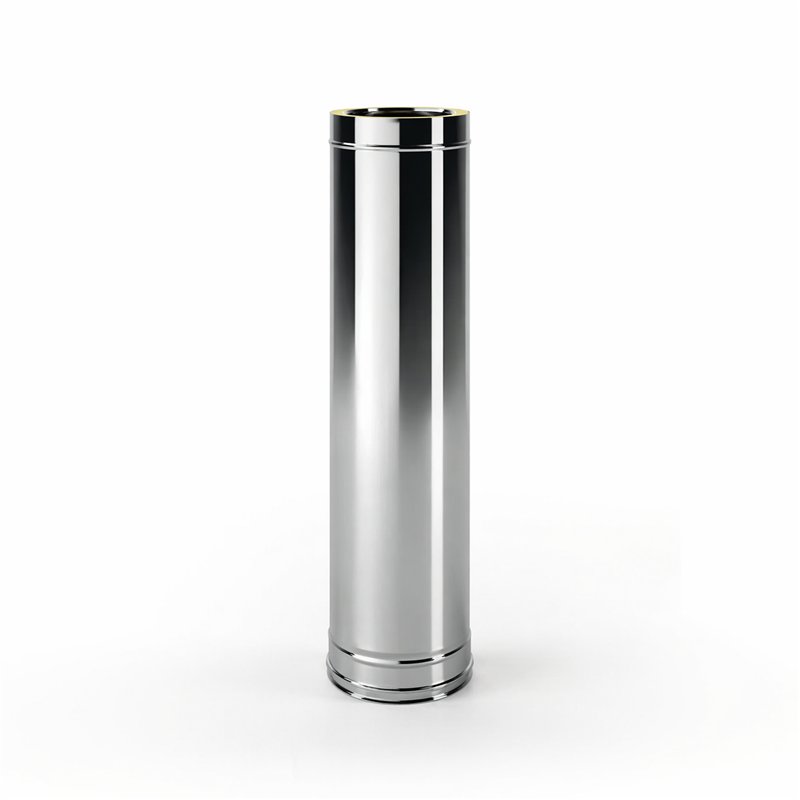

Pipe L 1.00 m double wall flue ISO25 De Marinis Inox
  • Pipe L 1.00 m double wall flue ISO25 De Marinis Inox
  • Pipe L 1.00 m double wall flue ISO25 De Marinis Inox

Pipe L 1.00 m double wall flue ISO25 De Marinis Inox

I2T180
De Marinis

Pipe L 1.00 m double wall flue ISO25 De Marinis Inox

Diametro
€75.20
€60.16Save 20%
Quantity

help_outlineAsk about product
Pipe L 1.00 m double wall flue ISO25 De Marinis Inox

Pipe L 1.00 m double wall flue ISO25 De Marinis Inox

Pipe L 1.00 m double wall flue ISO25 De Marinis Inox

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description

LINEAR ELEMENT LENGTH MM. 1000
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM



Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 1000 mm straight element is used to make horizontal or vertical sections

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel







  Cod. Øi Øe Hu I
Acciaio Inox I2T180 80 130 945 45
Acciaio Inox I2T1100 100 150 945 45
Acciaio Inox I2T1130 130 180 945 45
Acciaio Inox I2T1150 150 200 945 45
Acciaio Inox I2T1180 180 230 945 45
Acciaio Inox I2T1200 200 250 945 45
Acciaio Inox I2T1250 250 300 945 45
Acciaio Inox I2T1300 300 350 945 45
Acciaio Inox I2T1350 350 400 945 45
Acciaio Inox I2T1400 400 450 945 45
Acciaio Inox I2T1450 450 500 945 45
Acciaio Inox I2T1500 500 550 945 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
I2T180

Specific References

MPN
I2T1
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
