Intermediate plate support double wall flue ISO25 De Marinis Inox
Intermediate plate support double wall flue ISO25 De Marinis Inox
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description

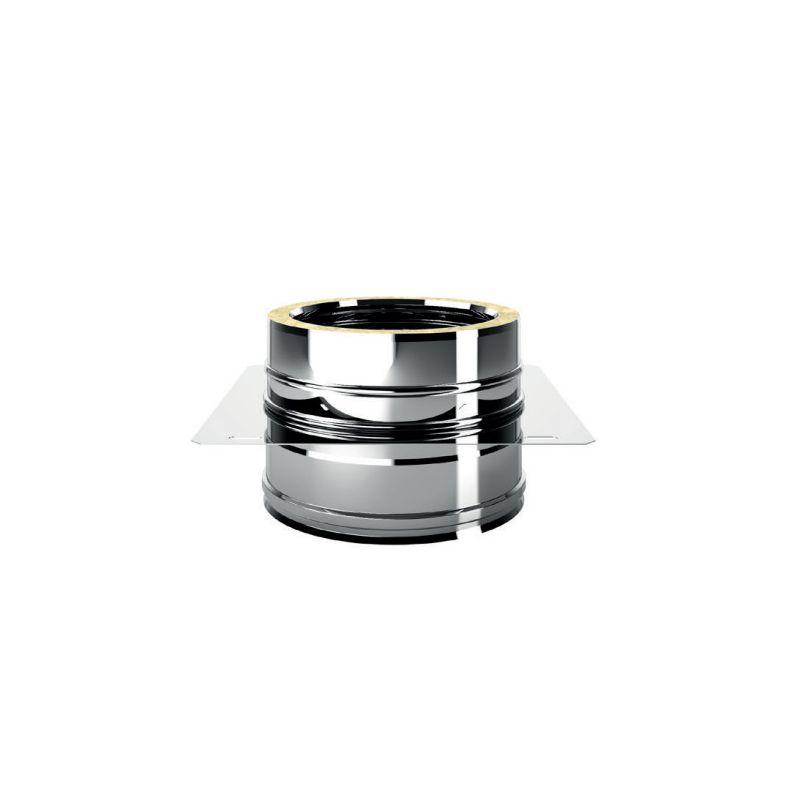

INTERMEDIATE PLATE WITH STRAIGHT ELEMENT
STAINLESS STEEL CHIMNEY - DOUBLE WALL
ISO25 INOX SYSTEM
Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years
The intermediate plate, resting on a structure or by means of support fins art. DEM.CP allows you to divide the weight loads in several points ensuring greater stability
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
| Cod. | Øi | Øe | Hu | Hn | A | B | I | |
|---|---|---|---|---|---|---|---|---|
| Acciaio Inox | I2PI80 | 80 | 130 | 130 | 92 | 220 | 200 | 45 |
| Acciaio Inox | I2PI100 | 100 | 150 | 130 | 92 | 240 | 220 | 45 |
| Acciaio Inox | I2PI130 | 130 | 180 | 130 | 92 | 270 | 250 | 45 |
| Acciaio Inox | I2PI150 | 150 | 200 | 130 | 92 | 290 | 270 | 45 |
| Acciaio Inox | I2PI180 | 180 | 230 | 130 | 92 | 320 | 300 | 45 |
| Acciaio Inox | I2PI200 | 200 | 250 | 130 | 92 | 330 | 320 | 45 |
| Acciaio Inox | I2PI250 | 250 | 300 | 130 | 92 | 390 | 370 | 45 |
| Acciaio Inox | I2PI300 | 300 | 350 | 130 | 92 | 440 | 420 | 45 |
| Acciaio Inox | I2PI350 | 350 | 400 | 130 | 92 | 490 | 470 | 45 |
| Acciaio Inox | I2PI400 | 400 | 450 | 130 | 92 | 540 | 520 | 45 |
| Acciaio Inox | I2PI450 | 450 | 500 | 130 | 92 | 590 | 580 | 45 |
| Acciaio Inox | I2PI500 | 500 | 550 | 130 | 92 | 640 | 620 | 45 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
