Description

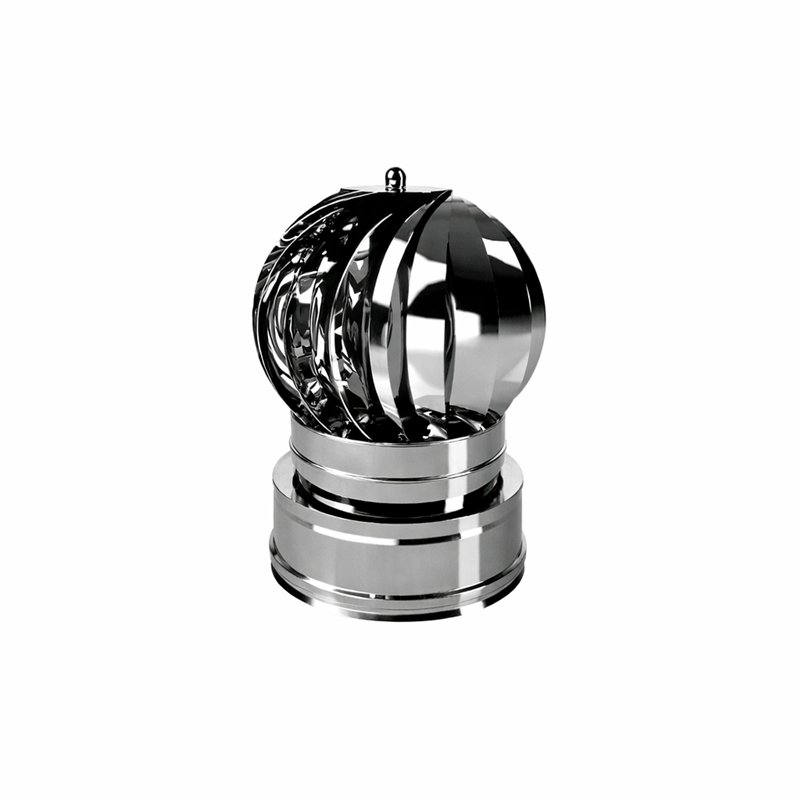

WIND HAT
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.


Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The wind cap with the rotation caused by the action of the wind, favors the draft by creating a depression inside the pipe itself; in accordance with current legislation, it can only be used for clean air exhalation

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall



  Cod. Øi Øe H Ød
Acciaio Inox I2CE80 80 130 330 215
Acciaio Inox I2CE100 100 150 330 215
Acciaio Inox I2CE130 130 180 330 215
Acciaio Inox I2CE150 150 200 345 230
Acciaio Inox I2CE180 180 230 410 295
Acciaio Inox I2CE200 200 250 410 295
Acciaio Inox I2CE250 250 300 460 345
Acciaio Inox I2CE300 300 350 505 390

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
I2CE

Specific References

MPN
I2CE
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
