Description

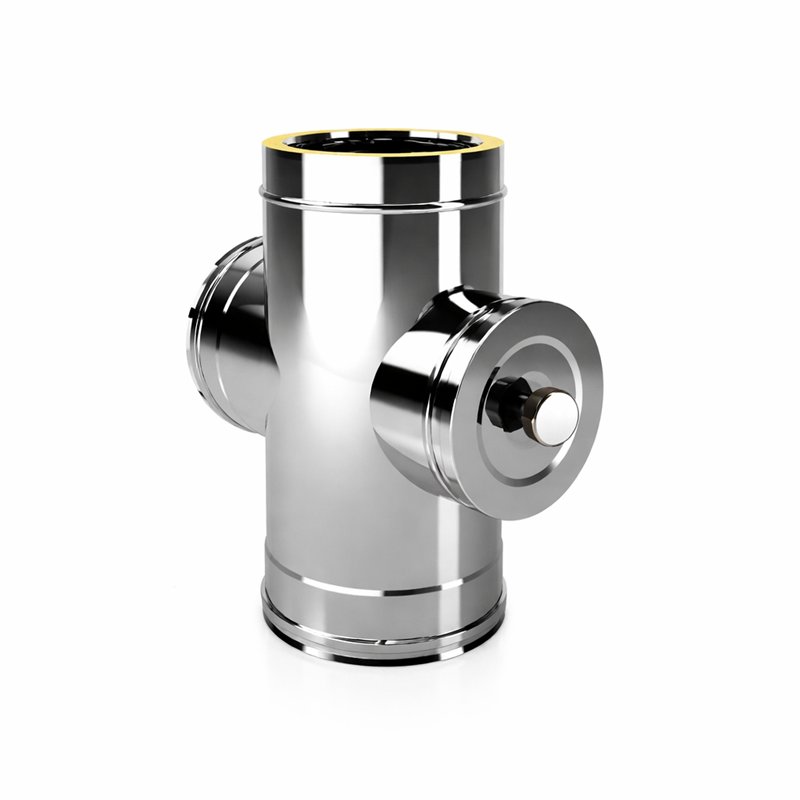

90° T-JOINT WITH INSPECTION AND HIGH TEMPERATURE CAP
STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO25 STAINLESS SYSTEM



Iso25 INOX is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or gas boilers condensation, etc.).
The entire ISO 25 INOX line is certified according to European regulation EN-1856-1:2009 and is guaranteed for 10 years

The 4-way T-piece allows you to insert an inspection plug in line; therefore it allows the maintenance of smoke ducts with limited space below which does not allow the insertion of an inspection module; the connections are 3 male (sides and lower) and 1 female (upper)

Equipped with CAP for high temperatures

Designation: Chimney system EN 1856-1:2009

Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

  Cod. Øi Øe Hu A B ØT I
Acciaio Inox I2TCH80 80 130 275 160 150 80 45
Acciaio Inox I2TCH100 100 150 275 160 160 100 45
Acciaio Inox I2TCH130 130 180 445 245 175 130 45
Acciaio Inox I2TCH150 150 200 445 245 185 150 45
Acciaio Inox I2TCH180 180 230 445 245 200 180 45
Acciaio Inox I2TCH200 200 250 445 245 210 200 45
Acciaio Inox I2TCH250 250 300 445 245 235 200 45



Material delivery terms: 1 week

Certification : KIWA

Warranty: 10 Years
