Description

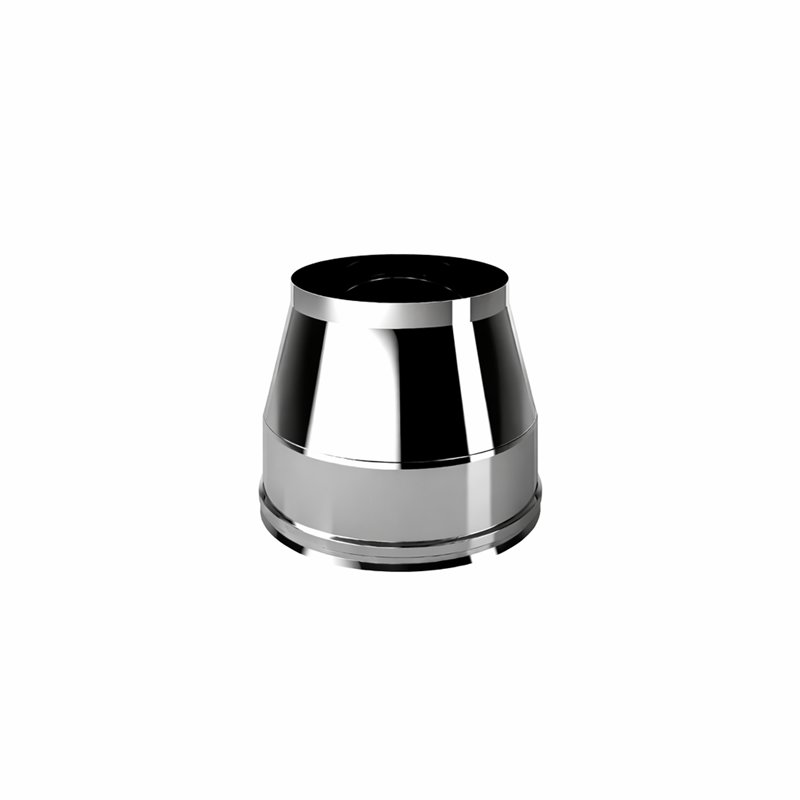

CONICAL TRUNK HAT
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.


Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The truncated conical cap, without flow resistance, is used in pressurized systems, cooker hoods or condensing boilers, separating the condensates of the smoke channel from the exhaust of the vertical chimney

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

 Cod.ØiØeH
Acciaio InoxI2TO8080130170
Acciaio InoxI2TO100100150200
Acciaio InoxI2TO130130180200
Acciaio InoxI2TO150150200200
Acciaio InoxI2TO180180230200
Acciaio InoxI2TO200200250200
Acciaio InoxI2TO250250300200
Acciaio InoxI2TO300300350200
Acciaio InoxI2TO350350400185
Acciaio InoxI2TO400400450185
Acciaio InoxI2TO450450500185
Acciaio InoxI2TO500500550185

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
