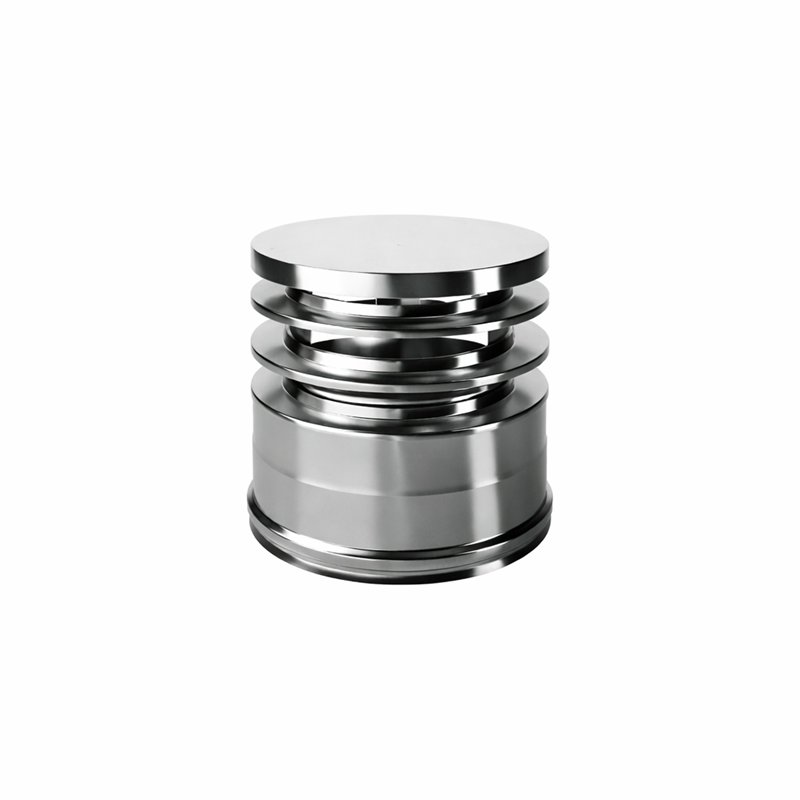

RING TERMINAL WITH FLAT FINS
STAINLESS STEEL FLUE - DOUBLE WALL INSULATED
ISO25 INOX SYSTEM
Iso25 INOX is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or operating temperatures up to 600°C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or gas boilers condensation, etc.).
The entire ISO 25 INOX line is certified according to European regulation EN-1856-1:2009 and is guaranteed for 10 years
The ring cap is the most aesthetically pleasing end of the flue; the flat fins allow optimal smoke evacuation.
Designation: Chimney system EN 1856-1:2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
Cod. | Øi | Øe | Ød | H | N.ANELLI | |
---|---|---|---|---|---|---|
Acciaio Inox | I2TLN80 | 80 | 130 | 130 | 185 | 3 |
Acciaio Inox | I2TLN100 | 100 | 150 | 150 | 215 | 4 |
Acciaio Inox | I2TLN130 | 130 | 180 | 180 | 215 | 4 |
Acciaio Inox | I2TLN150 | 150 | 200 | 200 | 215 | 4 |
Acciaio Inox | I2TLN180 | 180 | 230 | 230 | 245 | 5 |
Acciaio Inox | I2TLN200 | 200 | 250 | 250 | 245 | 5 |
Acciaio Inox | I2TLN250 | 250 | 300 | 300 | 275 | 6 |
Warranty: 10 Years
Material delivery terms: 1 week
Certification : KIWA
