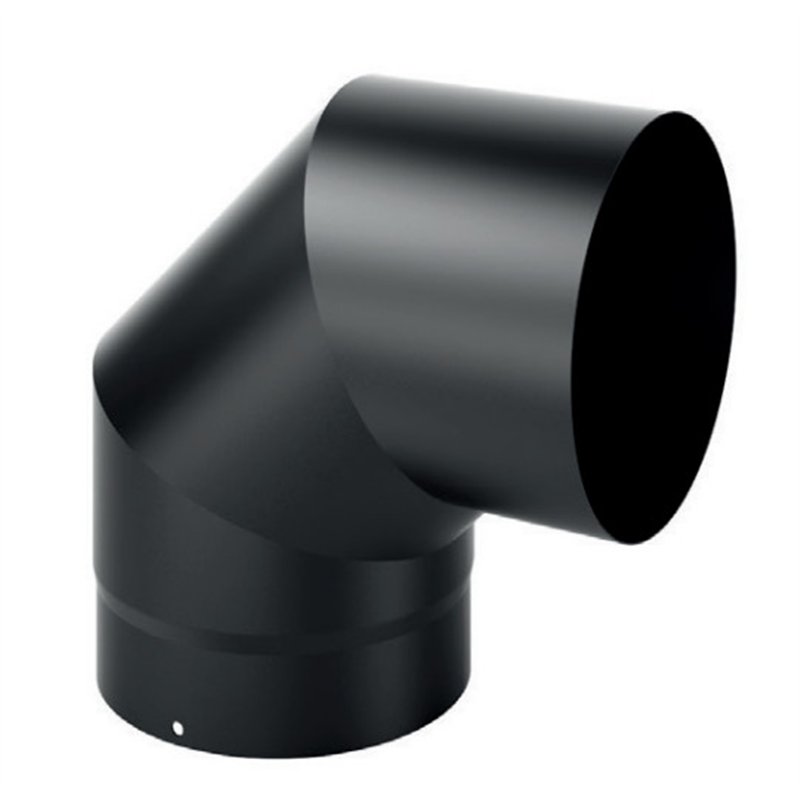

90° De Marinis DESIGN SDC9 elbow for wood-burning stoves

The De Marinis DESIGN SDC9 90° elbow is a component of the DESIGN flue system designed to create a 90-degree change of direction in the flue connection of wood-burning stoves, fireplaces and biomass appliances.

It is manufactured from 2 mm carbon steel with a matt black high-temperature finish. Its robust construction and clean appearance make the DESIGN range particularly suitable for visible indoor installations.

The SDC9 elbow connects two flue sections at a right angle, allowing the flue route to be adapted to the position of the appliance and the chimney inlet.

It is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm.

Main features

• Manufacturer: De Marinis
• Range: DESIGN
• Product family code: SDC9
• Product type: fixed 90° elbow
• Angle: 90°
• Material: carbon steel
• Steel thickness: 2 mm
• Finish: matt black
• Function: 90° change of direction in the flue connection
• Application: flue systems for wood-burning stoves, fireplaces and biomass appliances
• Available diameters: Ø 120, 130, 140, 150, 160, 180 and 200 mm
• Temperature class: T600
• Marking: CE
• Reference standard: EN 1856-2:2009

What the DESIGN SDC9 elbow is used for

The SDC9 elbow is used where a 90-degree change of direction in the flue route is required.

It can be used, for example, to connect a vertical section to a horizontal section or to reach a chimney inlet that is not aligned with the appliance flue outlet.

Before purchasing, select the correct diameter and check compatibility with:

• the stove or fireplace flue outlet;
• the other pipes and fittings in the system;
• the appliance manufacturer's instructions;
• the installation configuration specified by the installer.

90° elbow and chimney draught

Every change of direction affects the route of combustion products and may influence the draught characteristics of the flue system.

The number and position of elbows and the overall length of the connecting flue should therefore be assessed according to the characteristics of the appliance and chimney.

Important: the use of a 90° elbow must comply with the appliance manufacturer's instructions and the technical design of the installation. Where possible, unnecessary changes of direction in the flue route should be avoided.

Technical data and classification

The component belongs to the DESIGN system manufactured in accordance with EN 1856-2:2009 for indoor installations with biomass appliances.

• Temperature class: T600
• Pressure class: N1
• Condensate resistance: D
• Corrosion resistance class: VM
• Material/thickness designation: L01200-G440

De Marinis dimensions and product codes

The table below identifies the available SDC9 90° elbow variants. All dimensions are expressed in millimetres.

Øn indicates the nominal diameter, while A, B and I correspond to the dimensions shown in the technical drawing included on the product page.

Technical note: dimensions A and B vary according to the nominal diameter, while insertion dimension I is 50 mm for all SDC9 variants. Always refer to the technical drawing included on the product page.

How to read the technical drawing

The technical drawing included on the product page allows the overall dimensions of the elbow to be checked before ordering.

• Øn: nominal elbow diameter
• A: elbow dimension varying according to nominal diameter
• B: overall dimension shown in the technical drawing
• I: insertion dimension, 50 mm

Comparing the technical drawing, dimensional table and selected diameter helps verify the required installation space and identify the exact De Marinis product code.

DESIGN system compatibility

For correct dimensional continuity and system configuration, the use of De Marinis components from the same range and with the same nominal diameter is recommended.

Before combining components from different systems or manufacturers, their dimensional, technical and regulatory compatibility must be checked.

Installation

Diameter, elbow position, total number of changes of direction, flue connection length, draught and safety clearances must be assessed according to the appliance, flue system and applicable regulations.

The DESIGN system is intended for indoor installation. Installation must be carried out by qualified personnel in accordance with the appliance manufacturer's instructions and applicable technical requirements.
