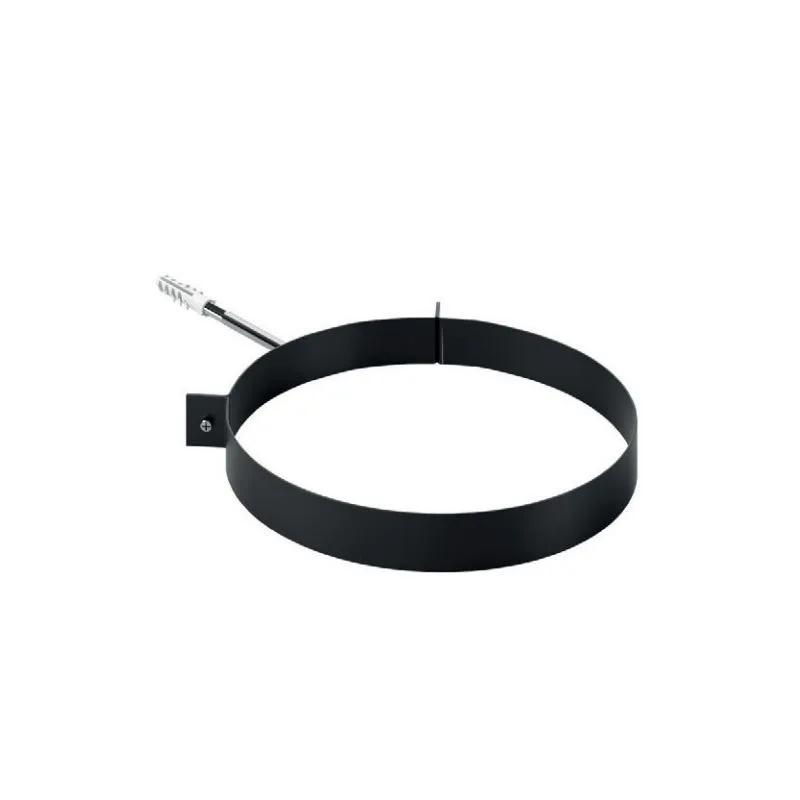

De Marinis DESIGN SDCM wall clamp with fixing plug

The De Marinis DESIGN SDCM wall clamp is an accessory designed to secure and support flue pipes against a wall in installations for wood-burning stoves, fireplaces and biomass appliances.

The clamp anchors the pipe to the wall, helping maintain the flue section in the required position and reducing unwanted movement or misalignment.

It is supplied with a wall fixing plug and features a matt black finish matching the other components of the De Marinis DESIGN range, making it suitable for visible indoor installations.

The SDCM wall clamp is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm.

Main features

• Manufacturer: De Marinis
• Range: DESIGN
• Product family code: SDCM
• Product type: wall clamp with fixing plug
• Function: securing and supporting the flue pipe against a wall
• Fixing: wall plug
• Finish: matt black
• Application: flue pipes for wood-burning stoves, fireplaces and biomass appliances
• Available diameters: Ø 120, 130, 140, 150, 160, 180 and 200 mm
• Dimension H: 25 mm
• Compatibility: De Marinis DESIGN range

What the DESIGN SDCM wall clamp is used for

The SDCM is used to secure a flue pipe to a wall and contribute to the mechanical stability of the connecting flue.

It is particularly useful for vertical sections or layouts where the pipe runs close to a wall and requires an additional fixing point.

The clamp does not alter the flue gas route and is not a connecting fitting: its purpose is solely to support and maintain the pipe in position.

Before ordering, select the diameter matching the pipe on which the clamp will be installed.

Securing the flue pipe to the wall

The clamp fits around the outside of the pipe and is connected to the wall using the supplied fixing system.

The position of the clamps should be determined according to the length and configuration of the connecting flue, the weight of the components and the characteristics of the supporting wall.

Important: the fixing plug and anchoring system must be suitable for the type and strength of the wall. The clamp should not be treated as the sole structural support for configurations not envisaged by the flue system.

DESIGN system compatibility

The SDCM is designed for use with De Marinis DESIGN flue pipes and components.

Each version corresponds to a specific nominal diameter, so the clamp must have the same diameter as the pipe being secured.

Using components from the same range also maintains a consistent appearance thanks to the matching matt black finish.

De Marinis dimensions and product codes

The table below lists the available SDCM wall clamp variants. All dimensions are expressed in millimetres.

Øn indicates the nominal diameter of the compatible pipe, while H corresponds to the dimension shown in the technical drawing included on the product page.

Technical note: the SDCM wall clamp is available in nominal diameters from Ø120 to Ø200 mm and has dimension H = 25 mm for all variants. Always select the clamp matching the pipe diameter and refer to the technical drawing included on the product page.

How to read the technical drawing

• Øn: nominal diameter of the compatible flue pipe
• H: clamp dimension, 25 mm
• Clamp: retaining element fitted around the pipe
• Wall fixing: component used to secure the clamp to the wall

Comparing the selected diameter, dimensional table and technical drawing helps identify the exact De Marinis product code.

Installation

The clamp should be positioned to provide stable pipe support without deforming the pipe or interfering with the joints of adjacent components.

The number and spacing of fixing points should be determined according to the installation layout and the technical requirements of the flue system.

Installation should be carried out by qualified personnel, using anchoring systems suitable for the supporting wall and in accordance with applicable requirements.
