100 cm De Marinis DESIGN SDT1 wood stove pipe

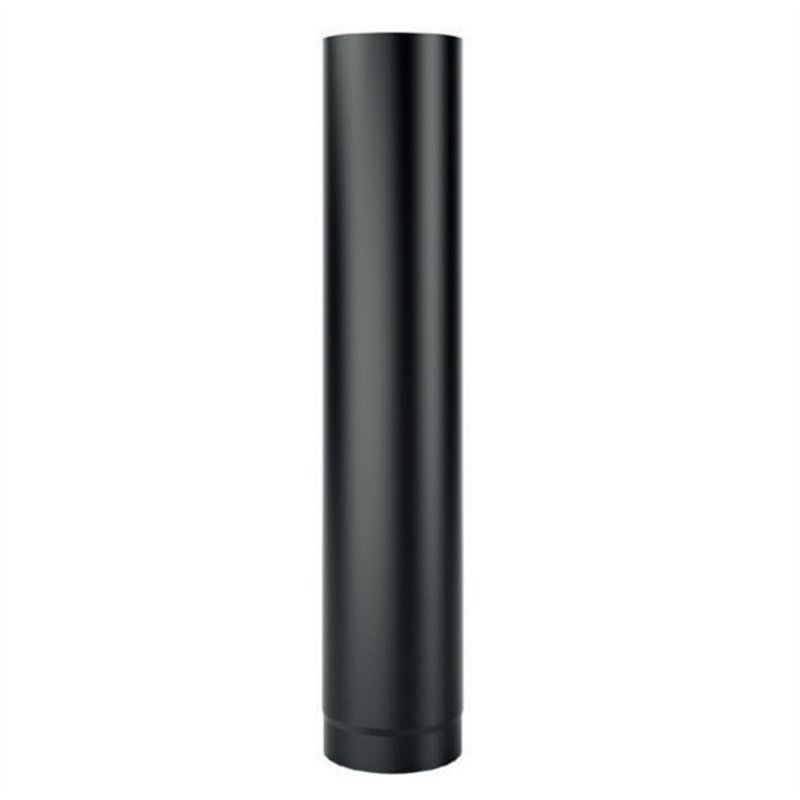

The 1000 mm De Marinis DESIGN SDT1 straight pipe is a component of the DESIGN flue system for wood-burning stoves, fireplaces and biomass appliances.
It is manufactured from 2 mm carbon steel with a matt black high-temperature finish. Its robust construction and clean appearance make the DESIGN range particularly suitable for visible indoor installations.
The pipe is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm and can be combined with compatible DESIGN components of the same diameter.
Main features
- Manufacturer: De Marinis
- Range: DESIGN
- Product family code: SDT1
- Product type: straight pipe
- Nominal length: 1000 mm
- Material: carbon steel
- Steel thickness: 2 mm
- Finish: matt black
- Application: flue systems for wood-burning stoves, fireplaces and biomass appliances
- Available diameters: Ø 120, 130, 140, 150, 160, 180 and 200 mm
- Temperature class: T600
- Marking: CE
- Reference standard: EN 1856-2:2009
What the DESIGN SDT1 pipe is used for
The SDT1 straight element is designed to form part of the flue connection for wood-burning stoves and fireplaces together with compatible pipes, elbows, adapters and accessories from the DESIGN range.
Its nominal 100 cm length is particularly suitable for creating extended straight sections of the flue route while reducing the number of joints required compared with using several shorter elements.
Before purchasing, select the correct diameter and check that it matches the appliance flue outlet and all other components used in the installation.
Technical data and classification
The component belongs to the DESIGN system manufactured in accordance with EN 1856-2:2009 and is designed for high-temperature biomass applications.
- Temperature class: T600
- Pressure class: N1
- Condensate resistance: D
- Corrosion resistance class: VM
- Material/thickness designation: L01200-G440
De Marinis dimensions and product codes
The table below identifies the available 1000 mm SDT1 pipe variants. All dimensions are expressed in millimetres.
Øn indicates the nominal pipe diameter, while Hu and I correspond to the dimensions shown in the technical drawing included on the product page.
| Finish | De Marinis code | Øn (mm) | Hu (mm) | I (mm) |
|---|
| Matt black | SDT1120 | 120 | 950 | 50 |
| Matt black | SDT1130 | 130 | 950 | 50 |
| Matt black | SDT1140 | 140 | 950 | 50 |
| Matt black | SDT1150 | 150 | 950 | 50 |
| Matt black | SDT1160 | 160 | 950 | 50 |
| Matt black | SDT1180 | 180 | 950 | 50 |
| Matt black | SDT1200 | 200 | 950 | 50 |
Technical note: for the SDT1 pipe, Hu is 950 mm and I is 50 mm, corresponding to a nominal overall length of 1000 mm. Please also refer to the technical drawing included on the product page.
How to read the technical drawing
The technical drawing included on the product page allows the main dimensions of the component to be checked before ordering.
- Øn: nominal pipe diameter
- Hu: useful main section dimension, 950 mm
- I: joint/insertion dimension, 50 mm
Comparing the technical drawing, dimensional table and selected diameter makes it easier to identify the exact De Marinis product code required for the installation.
DESIGN system compatibility
For correct dimensional continuity and system configuration, the use of De Marinis components from the same range and with the same nominal diameter is recommended.
Before combining components from different systems or manufacturers, their dimensional, technical and regulatory compatibility must be checked.
Installation
Pipe diameter, flue route, number of bends, safety clearances and installation method must be determined according to the appliance, flue system and applicable regulations.
The DESIGN system is intended for indoor installation. Installation must be carried out by qualified personnel in accordance with the appliance manufacturer's instructions and applicable technical requirements.
