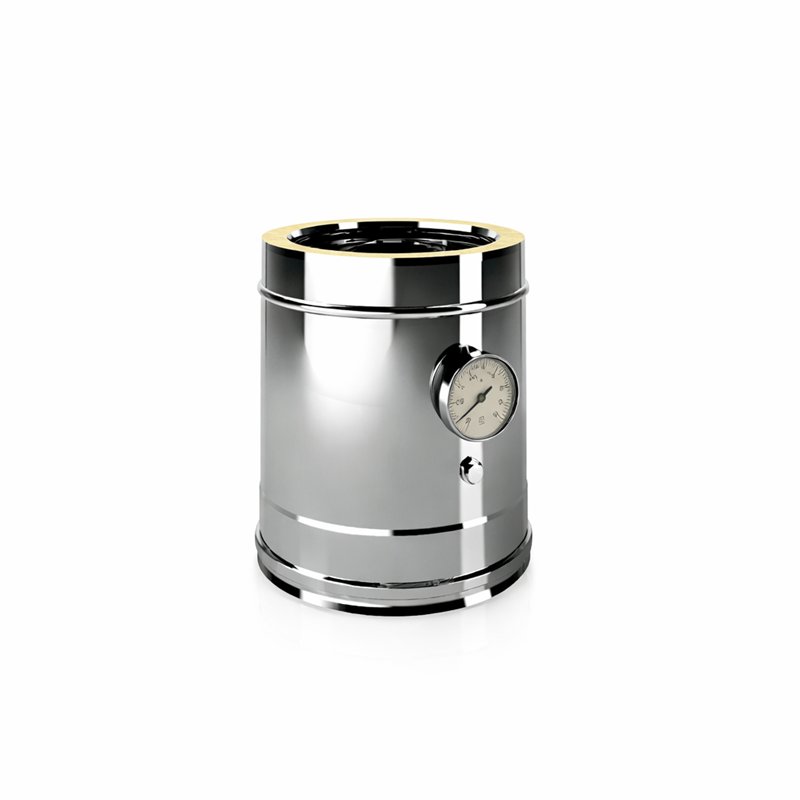

De Marinis double wall flue and smoke detection module
  • De Marinis double wall flue and smoke detection module
  • De Marinis double wall flue and smoke detection module

De Marinis double wall flue and smoke detection module

I2IC80

De Marinis double wall flue and smoke detection module

Diametro
€116.40
€93.12 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
SMOKE DETECTION MODULE
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.


Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The smoke and temperature detection module, required by Legislative Decree 128/10, is used for the analysis and permanent control of the temperature of the fumes and the detection of the combustion efficiency

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel


 Cod.ØiØeHuI
Acciaio InoxI2IC808013027545
Acciaio InoxI2IC10010015027545
Acciaio InoxI2IC13013018027545
Acciaio InoxI2IC15015020027545
Acciaio InoxI2IC18018023027545
Acciaio InoxI2IC20020025027545
Acciaio InoxI2IC25025030027545
Acciaio InoxI2IC30030035027545
Acciaio InoxI2IC35035040027545
Acciaio InoxI2IC40040045027545
Acciaio InoxI2IC45045050027545
Acciaio InoxI2IC50050055027545

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
I2IC80

Specific References

MPN
I2IC
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
