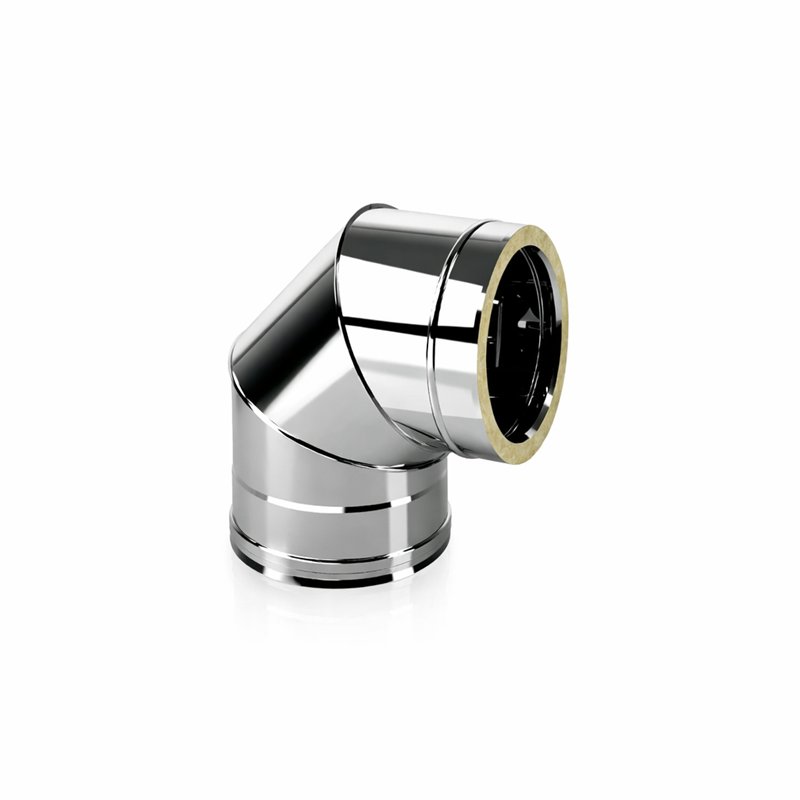

CURVE 90 °
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM
Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years
The 90 ° curve allows you to move both vertically and horizontally
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel
| | Cod. | Øi | Øe | A | B | I |
|---|
| Acciaio Inox | I2C980 | 80 | 130 | 155 | 105 | 45 |
| Acciaio Inox | I2C9100 | 100 | 150 | 1 63 | 113 | 45 |
| Acciaio Inox | I2C9130 | 130 | 180 | 180 | 130 | 45 |
| Acciaio Inox | I2C9150 | 150 | 200 | 190 | 140 | 45 |
| Acciaio Inox | I2C9180 | 180 | 230 | 205 | 144 | 45 |
| Acciaio Inox | I2C9200 | 200 | 250 | 215 | 165 | 45 |
| Acciaio Inox | I2C9250 | 250 | 300 | 240 | 190 | 45 |
| Acciaio Inox | I2C9300 | 300 | 350 | 278 | 224 | 45 |
| Acciaio Inox | I2C9350 | 350 | 400 | 328 | 273 | 45 |
| Acciaio Inox | I2C9400 | 400 | 450 | 353 | 298 | 45 |
| Acciaio Inox | I2C9450 | 450 | 500 | 364 | 319 | 45 |
| Acciaio Inox | I2C9500 | 500 | 550 | 403 | 348 | 45 |
Termini consegna materiale : 1 settimana
Certificazione : KIWA
Garanzia: 10 Anni
