Description

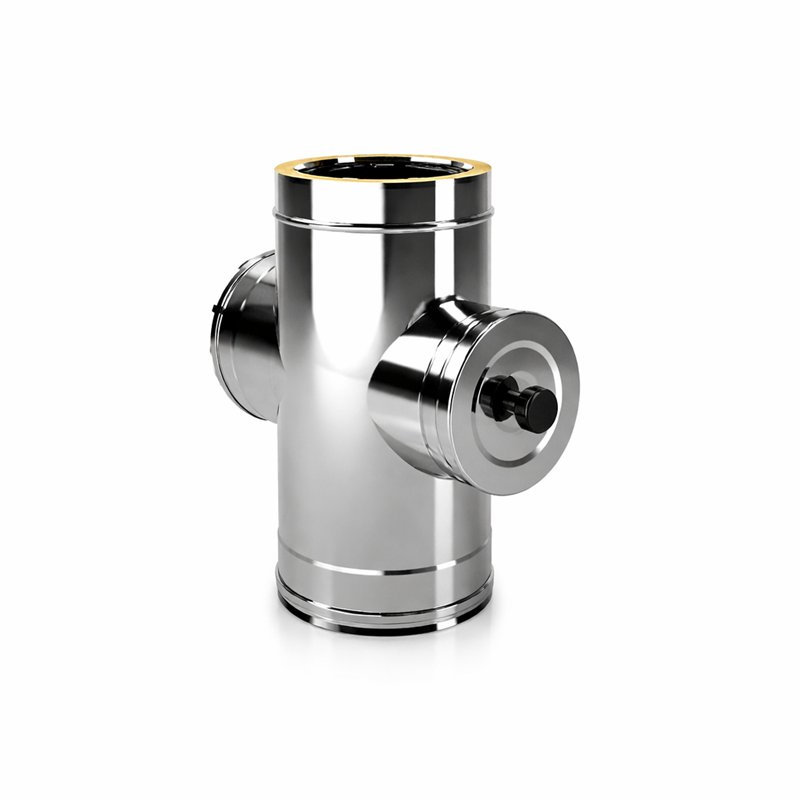

90 ° T FITTING WITH INSPECTION
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM


Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 4-way T-fitting allows you to insert an in-line inspection cap; therefore allows the maintenance of smoke ducts with reduced lower space which does not allow the insertion of an inspection module; the connections are 3 male (sides and lower) and 1 female (upper)

For smoke temperatures above 200 ° C, the TAIXHI cap is required, available from the accessories

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel


 Cod.ØiØeHuABØTI
Acciaio InoxI2TC80801302751601508045
Acciaio InoxI2TC10010015027516016010045
Acciaio InoxI2TC13013018044524517513045
Acciaio InoxI2TC15015020044524518515045
Acciaio InoxI2TC18018023044524520018045
Acciaio InoxI2TC20020025044524521020045
Acciaio InoxI2TC25025030044524523520045


Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
