Smoke detection module double wall flue ISO25 De Marinis Inox
  • Smoke detection module double wall flue ISO25 De Marinis Inox
  • Smoke detection module double wall flue ISO25 De Marinis Inox

Smoke detection module double wall flue ISO25 De Marinis Inox

I2PF80
De Marinis

Smoke detection module double wall flue ISO25 De Marinis Inox

Diametro
€60.00
€48.00Save 20%
Quantity

help_outlineAsk about product
Smoke detection module double wall flue ISO25 De Marinis Inox

Smoke detection module double wall flue ISO25 De Marinis Inox

Smoke detection module double wall flue ISO25 De Marinis Inox

I accept privacy policy rules

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

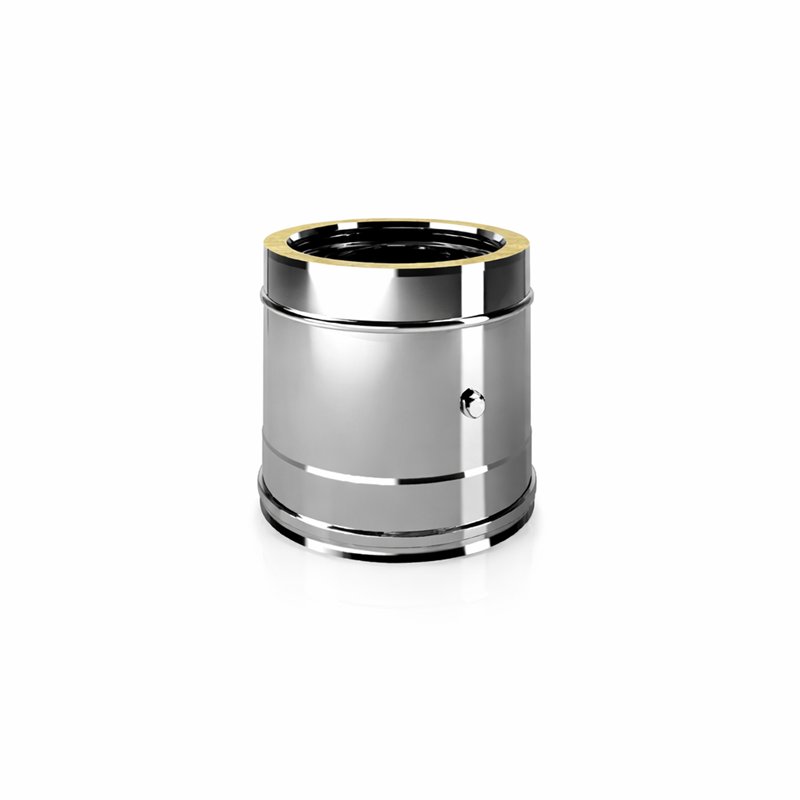

SMOKE DETECTION MODULE
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.


Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The 1000 mm straight element is used to make horizontal or vertical sections

The smoke detection module, required by UNI 10640 and UNI 10641 standards, is used for the analysis and control of the temperature of the fumes and the detection of the combustion efficiency

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel


  Cod. Øi Øe Hu I
Acciaio Inox I2PF80 80 130 195 45
Acciaio Inox I2PF100 100 150 195 45
Acciaio Inox I2PF130 130 180 195 45
Acciaio Inox I2PF150 150 200 195 45
Acciaio Inox I2PF180 180 230 195 45
Acciaio Inox I2PF200 200 250 195 45
Acciaio Inox I2PF250 250 300 195 45
Acciaio Inox I2PF300 300 350 195 45
Acciaio Inox I2PF350 350 400 195 45
Acciaio Inox I2PF400 400 450 195 45
Acciaio Inox I2PF450 450 500 195 45
Acciaio Inox I2PF500 500 550 195 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details
I2PF80

Specific References

MPN
I2PF
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
