Inox ISO25 insulated chimney flues

Reduced price

Single-double junction double wall flue ISO25 De Marinis Inox

Single-double junction double wall flue ISO25 De Marinis Inox

Reference I2RCI80

Brand De Marinis

Single-double junction double wall flue ISO25 De Marinis Inox

TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

ORDERS PREPARED WITH CARE

We prepare every order with care

Description

SINGLE / DOUBLE JUNCTION

STAINLESS STEEL CHIMNEY - DOUBLE WALL

ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).

The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

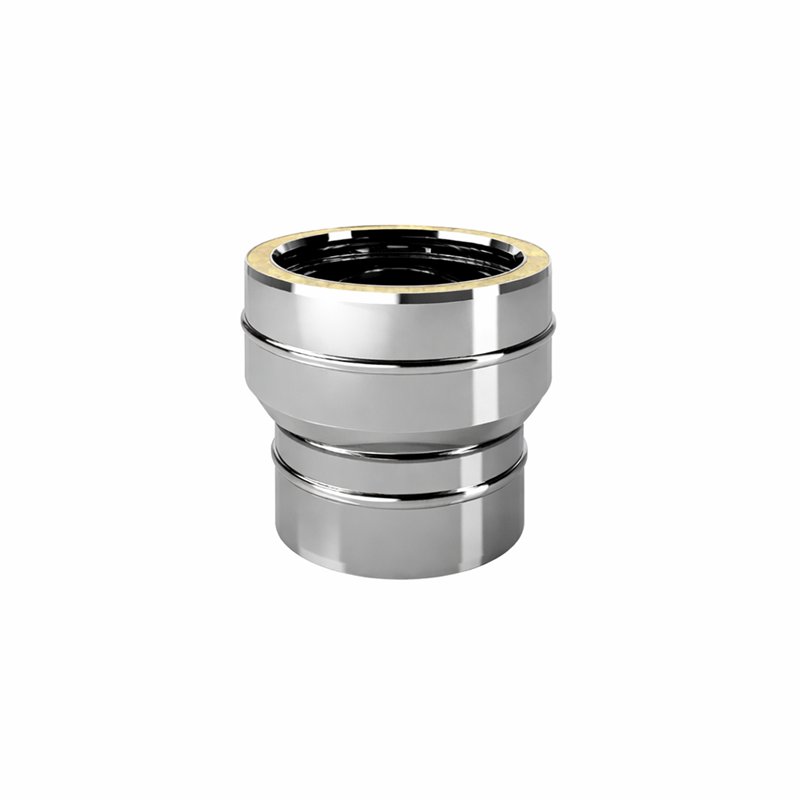

The mono-double joint is the fitting that allows the transition from the single-wall system to the double-wall system (inlet fitting)

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)

Pressure class: P1 (with seal) - N1 (without seal)

Condensation resistance: W (with gasket) - D (without gasket)

Corrosion resistance class: V2 (solid and liquid fuels)

Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall

	Cod.	Øi	Øe	Hu	I
Acciaio Inox	I2RCI80	80	130	85	45
Acciaio Inox	I2RCI100	100	150	85	45
Acciaio Inox	I2RCI130	130	180	85	45
Acciaio Inox	I2RCI150	150	200	85	45
Acciaio Inox	I2RCI180	180	230	85	45
Acciaio Inox	I2RCI200	200	250	85	45
Acciaio Inox	I2RCI250	250	300	85	45
Acciaio Inox	I2RCI300	300	350	85	45
Acciaio Inox	I2RCI350	350	400	85	45
Acciaio Inox	I2RCI400	400	450	85	45
Acciaio Inox	I2RCI450	450	500	85	45
Acciaio Inox	I2RCI500	500	550	85	45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni

Product Details

Reference I2RCI80

Specific References

MPN: I2RCI

Attachments

Download

ISO25 DOP

ISO25 DOP

Download (200.41KB)

ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
