Description
RING TERMINAL
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.



Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.
It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).
The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

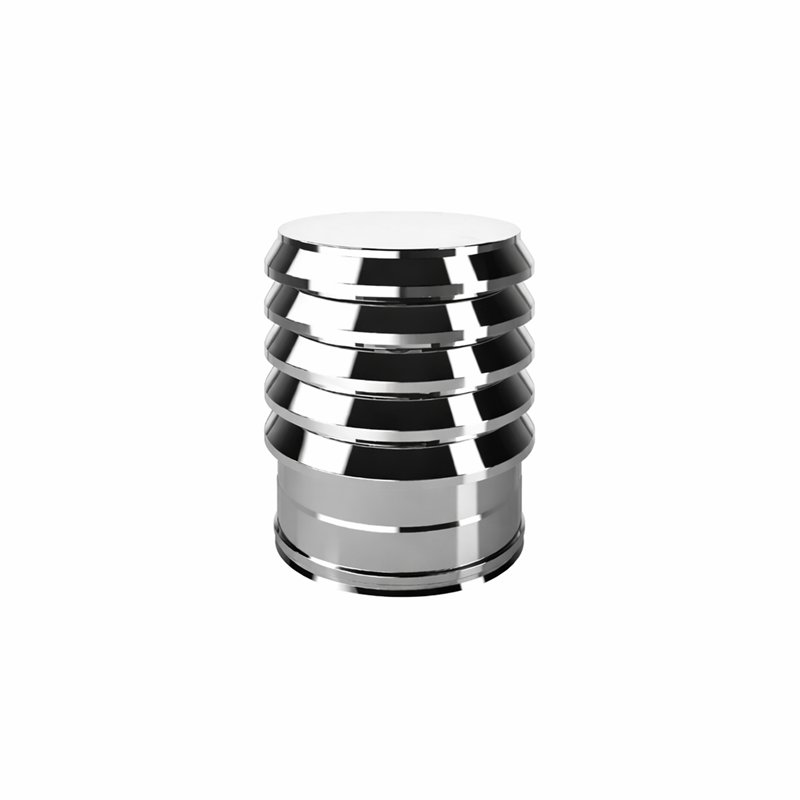

The ring hat is the end of the chimney with a more pleasant aesthetic and functionality comparable to the much more voluminous non-reflective hat

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)
Pressure class: P1 (with seal) - N1 (without seal)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Aisi 316 stainless steel internal wall - Aisi 304BA stainless steel external wall


 Cod.ØiØeHØd
Acciaio InoxI2TE8080130325180
Acciaio InoxI2TE100100150325230
Acciaio InoxI2TE130130180325230
Acciaio InoxI2TE150150200325250
Acciaio InoxI2TE180180230325280
Acciaio InoxI2TE200200250325300
Acciaio InoxI2TE250250300325350

Garanzia: 10 Anni

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Product Details
I2TE80

Specific References

MPN
I2TE
Attachments
Download
ISO25 DOP

ISO25 DOP

Download (200.41KB)
ISO25 SCHEDA TECNICA

ISO25 SCHEDA TECNICA

Download (93.55KB)
